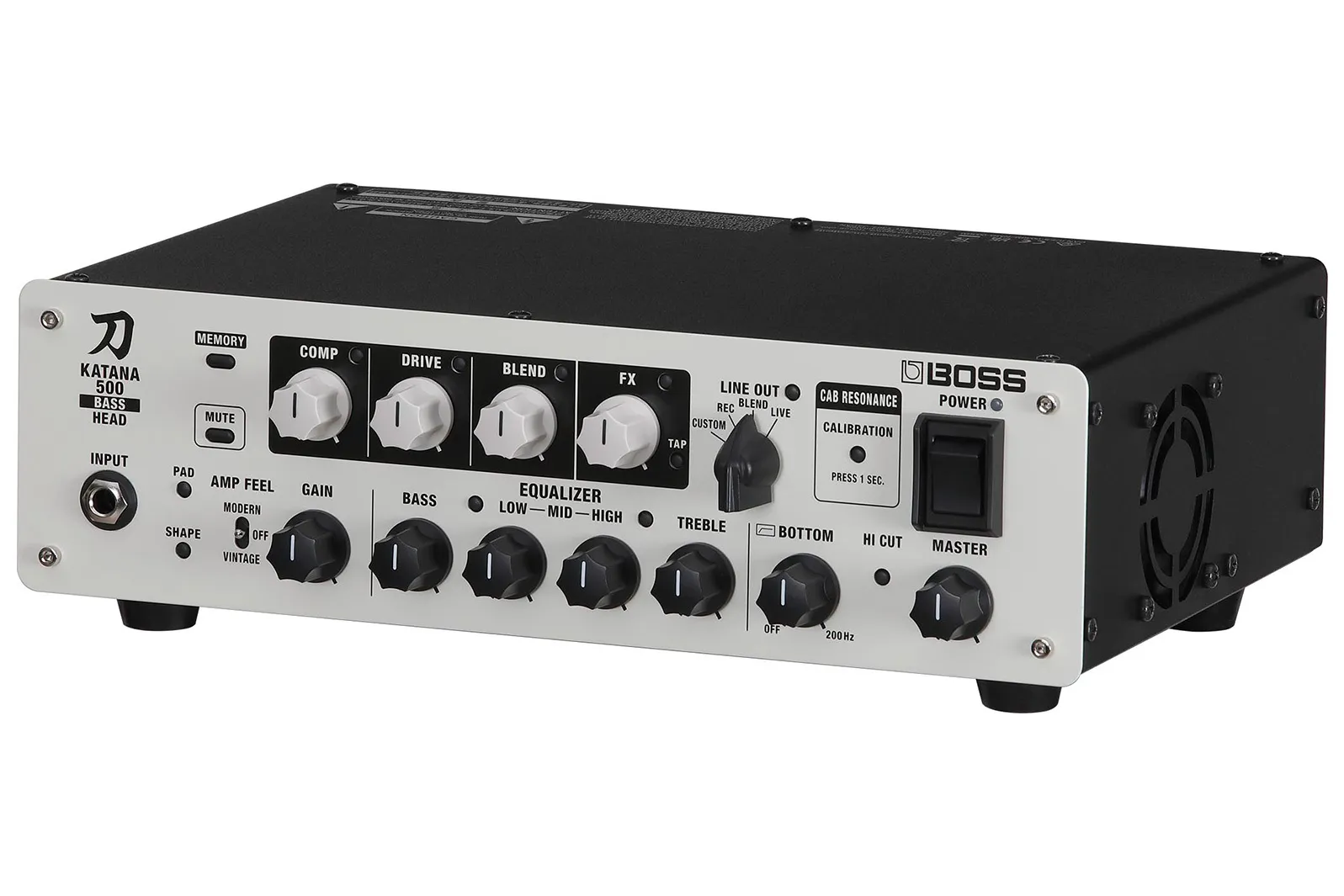

Boss Katana-500 500W Bass Head

SKU: KTN500BHD

WAS $1,249.00
RRP $1,379.00
NOW $1,200.00
SAVE 13%!
Sale Ends in
23:59 pm, 24 December 2024
Share:
  • GOLD COAST MUSIC
  • Out Of Stock
  • SYDNEY WAREHOUSE
  • 5+ In Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



(Orders dispatched in 1 to 3 business days from Sydney)






The Katana-500 Bass Head raises professional bass amplification to the next level with advanced BOSS technology. Refined preamp circuity and the newly developed 500-watt Class D power amp support your touch and technique with deeply expressive tones. And with the innovative Cab Resonance feature, you can quickly calibrate the amplifier’s output voice to achieve the ideal response with any speaker cabinet. You also get a wide range of premium tools to shape your personal sound, plus expansive connectivity for every playing situation.

  • Compact 500-watt bass amplifier head with professional tone tools for serious players
  • Next-level performance with a newly developed Class D power amp and innovative Cab Resonance calibration
  • Enhance the core bass sound for different styles with two Amp Feel settings
  • Wide-ranging four-band EQ, including low-mid and high-mid controls with three adjustable frequency settings
  • Compressor and drive controls, each with three selectable types
  • Shape switch with mid-scoop, bright, and wide-range options
  • Bottom knob to tighten the sound and eliminate sub-bass rumble
  • Hi Cut button with three selectable frequencies
  • Blend knob to mix in the dry bass sound
  • Pad switch to optimize the input for high-output active pickups
  • Onboard memory for saving and recalling a custom setup with a touch
  • Two high-current speaker outputs with robust locking connectors
  • XLR line output and headphones/recording jack
  • Edit tones and access over 60 effects with BOSS Tone Studio for Windows/macOS
  • USB connector for communicating with BOSS Tone Studio and audio recording/playback with music production software
  • Download and share Livesets at BOSS Tone Exchange
  • Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device
  • Optional GA-FC and GA-FC EX foot controllers for remote operation on stage
  • Optional companion speaker cabinet: Katana Cabinet 112 Bass

Download “BTS for KATANA BASS HEAD” for iOS
Download “BTS for KATANA BASS HEAD” for Android
Download “BOSS TONE STUDIO for KATANA BASS HEAD” for Windows/macOS

SPECIFICATIONS
Output Power
500 W (4 ohms) Peak
250 W (8 ohms) Peak
Nominal Input Level
INPUT: -10 dBu (1 M ohms)
RETURN IN: -10 dBu (100 k ohms)
Controls
MEMORY button
MUTE button
BOTTOM knob
HI CUT button
MASTER VOLUME knob
POWER switch

[AMPLIFIER]
PAD button
SHAPE button
AMP FEEL Switch (VINTAGE, OFF, MODERN)
GAIN knob

[INPUT EFX]
COMP button
DRIVE button
COMP knob
DRIVE knob

[EFFECTS]
BLEND button
FX button
TAP buttom
BLEND knob
FX knob

[EQUALIZER]
LOW MID button
HIGH MID button
BASS knob
LOW MID knob
HIGH MID knob
TREBLE knob

[LINE OUT]
LINE OUT button
LINE OUT konb (CUSTOM, REC, BLEND, LIVE)
GND LIFT switch (OFF, ON)
SELECT switch (POST, PRE, DIRECT)

[CAB RESONANCE]
CALIBRATION button
Indicators
PAD
SHAPE
MEMORY
MUTE
COMP
BLEND
FX
TAP
LOW MID
HIGH MID
LINE OUT
CALIBRATION
HI CUT
POWER

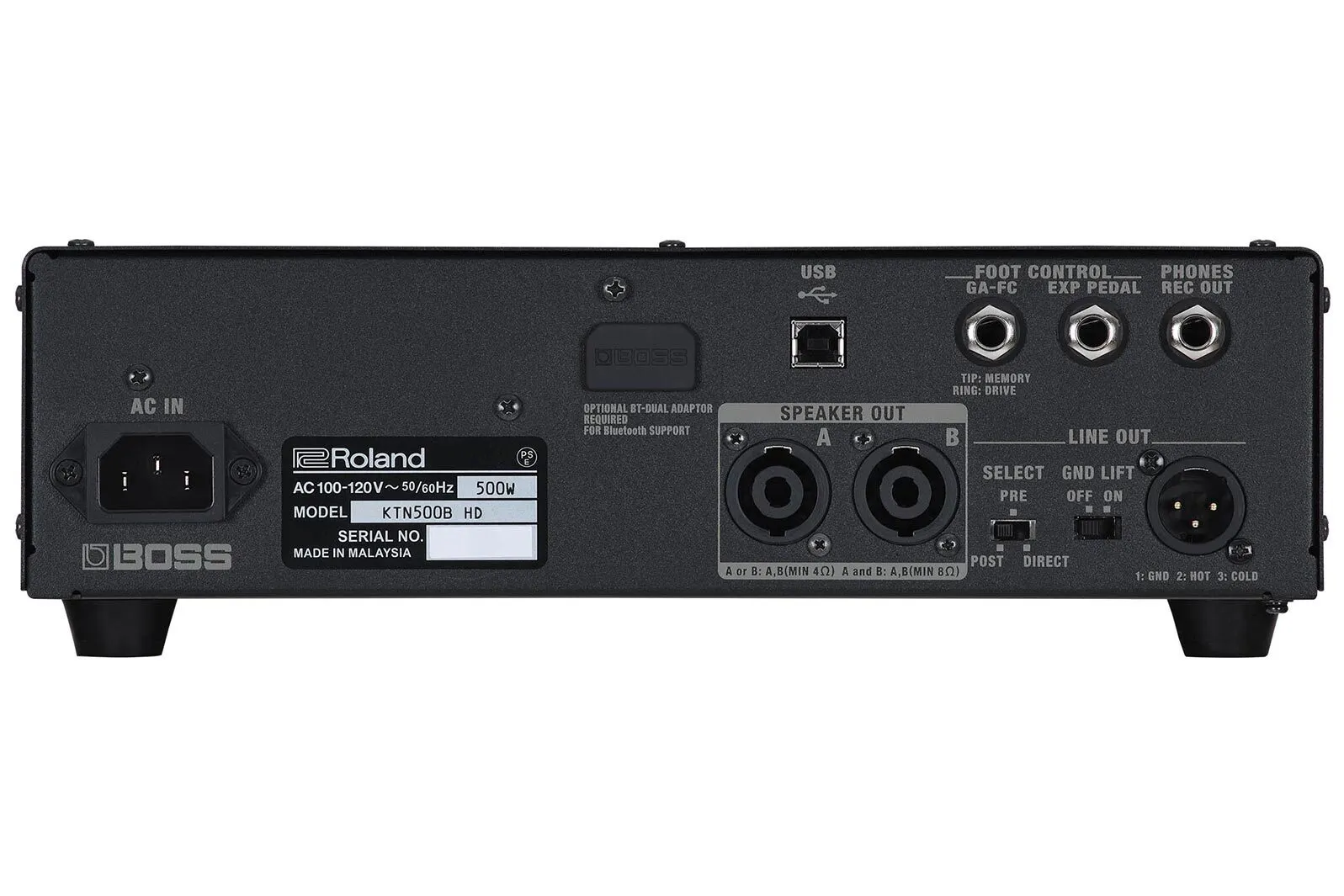

Connectors
INPUT jack: 1/4-inch phone type
LINE OUT jack:XLR type
SPEAKER OUT (MIN 4 ohms) connector: speakON type
PHONES/REC OUT jack: Stereo 1/4-inch phone type
EXP PEDAL jack: 1/4-inch TRS phone type
GA-FC/CTL CH1/CH2 jack jack: 1/4-inch TRS phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: Bluetooth® Audio MIDI Dual Adaptor
AC IN jack
Power Consumption
500 W
Accessories
Owner's Manual
Power cord
GA-FC sticker
Options (sold separately)
Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
Bluetooth® Audio MIDI Dual Adaptor (Model BT-DUAL)
SIZE AND WEIGHT
Width
298 mm
11-3/4 inches
Depth
212 mm
8-3/8 inches
Height
96 mm
3-13/16 inches
Weight (including battery)
2.8 kg
6 lbs 3 oz
SKU KTN500BHD
Brand Boss
