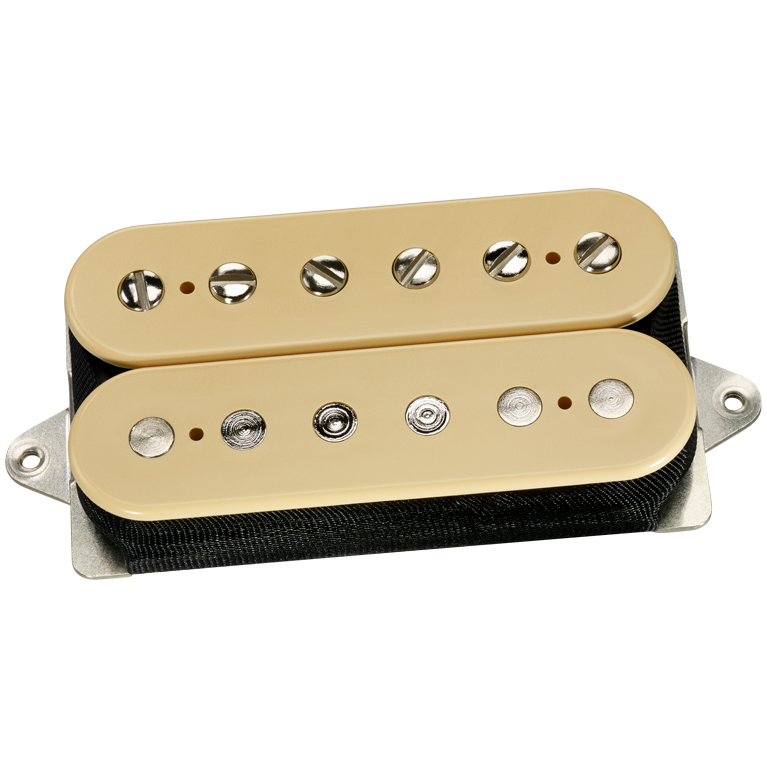

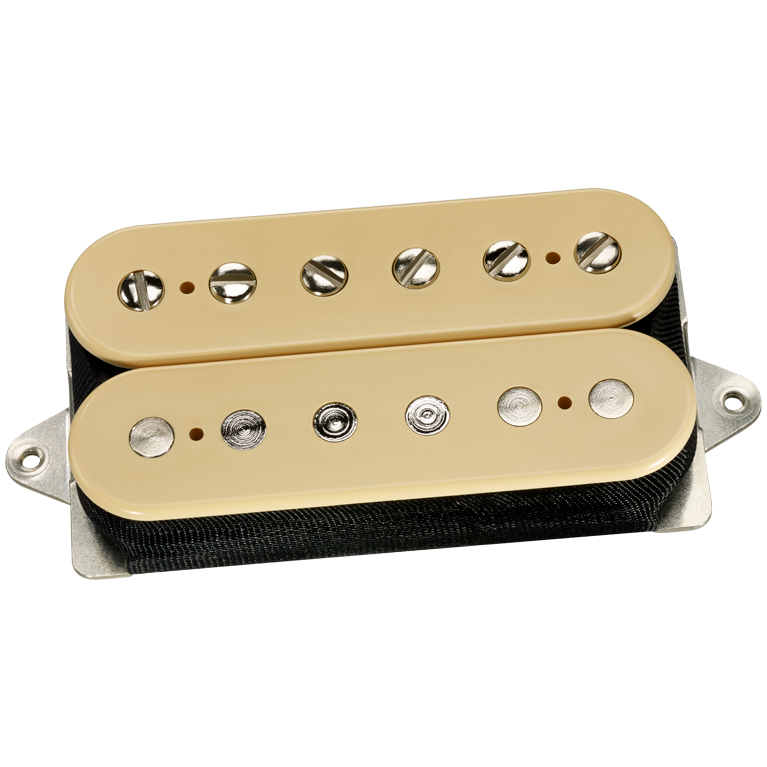

Dimarzio PAF 36th Anniversary Neck Pickup

Dimarzio PAF 36th Anniversary Neck Pickup

Here are the characteristics that make a great vintage humbucker: a soft magnetic field, sweet tone, perfect balance between warmth and clarity, the ability to go from clean to distorted by pick attack alone. For our PAF® 36th Anniversary Neck we wanted to continue in the path of pioneers such as Seth Lover (designer of the original Patent Applied For humbucker) and create pickups that combine all of the characteristics of great vintage humbuckers. These pickups are not merely clones. We re-engineered the PAF® using our patented technology and Larry DiMarzio’s own 1959 cherry sunburst Gibson® Les Paul® as the reference. Larry’s Gibson® Les Paul® has a uniquely amazing sound and it’s not only due to the pickups — it’s the total fusion of many elements of the guitar itself. Although the pickups have a weak magnetic field, the sound is well defined: almost like a single-coil. We duplicated the weaker magnetic field in order to allow the strings to vibrate longer, as well as focus and articulate the attack and output. We use computer-controlled winders to consistently layer the 42-gauge custom-coated wire, achieving the exact frequency response we want. Then it’s dipped in our custom formula to eliminate squeal and microphonics. The PAF® 36th Anniversary Neck is smooth but not muddy. It performs equally well in the neck or bridge, just as the best humbuckers from the 50s did.

F-spaced pickups measure 2.01" (51 mm) center-to-center from the first polepiece to the sixth. Standard-spaced pickups measure 1.90" (48 mm). Although some players believe that F-spaced pickups are only for the bridge position of tremolo bridge guitars, many guitars with fixed bridges (including post-1998 Gibson® and Epiphone® Les Paul®, SG® and semi-hollow guitars) should have F-spaced pickups in the bridge position. Most tremolo equipped guitars that have a nut width of 1-11/16” (43mm) or more should also use an F-spaced pickup in the neck position. If you’re replacing a bridge-position pickup and you're not sure what your string-spacing is, it's usually better to get an F-spaced model. It is not necessary for the strings to pass exactly over the center of the polepieces for best performance, but it is wise to avoid a situation where the E strings are sitting completely outside of the outer polepieces.

Recommended For

All positions

Tech Talk

There is no reference standard for the sound of a humbucker from the 1950s. All of them had variations in output and tone, and these differences could be quite large. Recently, we have focused our research on making pickups with warm highs and bright lows. This combination is only found in our favorite vintage humbuckers, and it’s really good for a pickup intended for both the neck and bridge positions. It allows the bass strings in the neck position to avoid muddiness, and the treble strings in the bridge position to be warm and not brittle.

Download Installation Instructions
Find the right wiring diagram for your guitar

Specs

Wiring: 4 Conductor (1 Conductor optional)
Magnet: Alnico 5
Output mV: 250
DC Resistance: 7.31 Kohm
Year of Introduction: 2008
Patent: 5,399,802 & 5,908,998

Pickup Dimensions

Tone Guide

Treble: 5.5

Mid: 6.0

Bass: 5.5
