Electrovoice EVOLVE30M Portable Column Speaker Black

SKU: EVL-EVOLVE30M

$2,199.00
RRP $2,871.00
SAVE $672.00
Share:
  • GOLD COAST MUSIC
  • Out Of Stock
  • SYDNEY WAREHOUSE
  • Out Of Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)

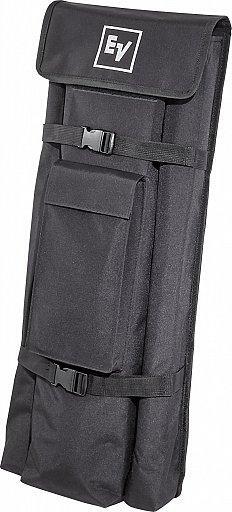

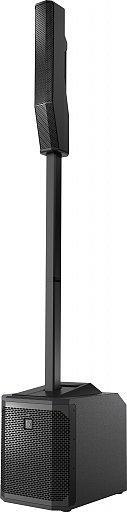

Designed to deliver a step up in sound quality and set a new performance standard for compact column speaker systems - Evovle 30M is perfect for solo musicians, small groups, mobile entertainers and smaller venues that need an easy-to-use, highly portable and lightweight system with extraordinary coverage and output for its size. Evovle 30M comes ready to go with speaker array, symmetrical aluminum pole connectors with internal wire assembly and magnetically assisted latching, subwoofer, and included pole/array carry case - all designed to pack up compactly, set up and tear down quickly, look great on stage, and withstand real-world wear and tear. Professional-grade EV-engineered components and build quality - The full-range column array and its six 2.8" neodymium drivers provide room-filling ultra-wide 120° coverage via custom-designed waveguides; array- formed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members. The array enclosure is constructed from a durable composite material and incorporates an ergonomic aluminum handle. Four tuning ports are located on the rear of the enclosure for acoustic optimization.

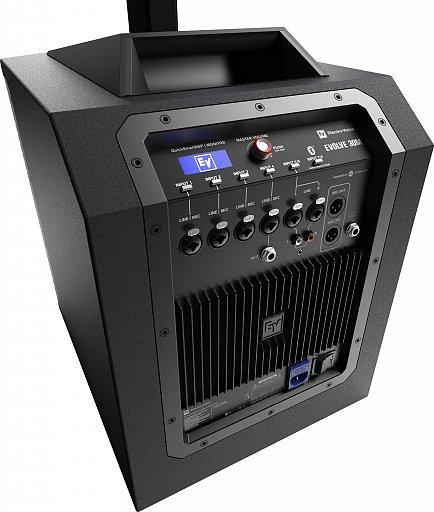

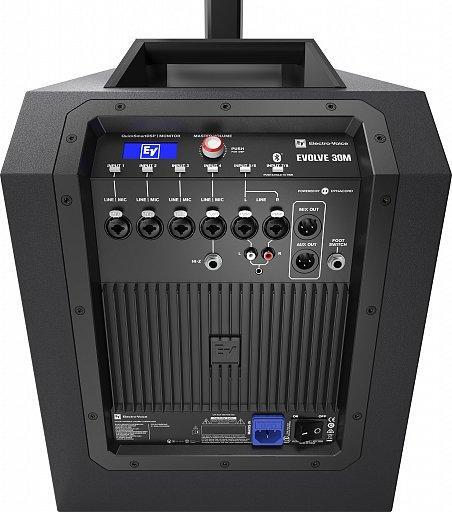

A 10" subwoofer is housed in a 15 mm wood enclosure with a high-efficiency laminar-flow vent design, for enhanced rigidity and acoustical performance. The Class-D amplifier provides up to 1000 W of output power: 500 W to the subwoofer and 500 W to the column array. The speakers are protected by a black powder-coated 18 ga. steel grille. Combined, these components generate a genuinely stunning performance to size ratio - an elegant form factor that looks as good as it sounds. The most extensive feature set in its class - The Evovle 30M White has an integrated full-function and fully programmable eight-channel digital mixer with multiple inputs (4x XLR/TRS combo line/mic inputs, 1x XLR/TRS stereo line input, 1x RCA, 1x 3.5 mm stereo, 1x Hi-Z instrument input, wireless Bluetooth Audio Input), and professional-grade preamps and mixer functions - all designed in collaboration with the world-class mixer engineering team at EV's sibling brand Dynacord. For the performing musician, Hi-Z and foot switch inputs are included for flexible system configuration, and a range of onboard studio-quality effects (30 presets, including chorus, delay, flange and reverb, via two FX channels) add myriad options for finessing your sound. This reduces set-up time - and on-stage clutter - by minimizing the need for external equipment such as a mixer and effects pedals, which also makes loading in and out of the venue quicker.

High-resolution, low-latency Bluetooth streaming ensures exceptional results for music playback or accompaniment. The next-generation Electro-Voice Quick Smart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, mixing and monitoring of all parameters of up to six Evovle 30M White systems simultaneously, and is fully programmable. The full-function GUI allows intuitive control of all system functions from your mobile device. Evovle 30M White offers simple or sophisticated operation according to your application, making great sound easy for users of all levels. EV's industry-leading Quick Smart DSP interface - Allowing intuitive navigation of system parameters via an LCD with single-knob control - as well as multiple options for signal routing and inputs. Setup is simple via four presets (Music, Live, Speech, Club), three- band system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure.

SPECIFICATIONS

  • Frequency response (-3 dB): 51 Hz to 20 KHz
  • Frequency range (-10 dB): 45 Hz to 20 KHz
  • Maximum SPL: 123 dB
  • Coverage (H x V): 120° x 40°
  • Amplifier rating: 1000 W
  • LF channel rating: 500 W
  • HF channel rating: 500 W
  • Crossover frequency: 200 Hz
  • Connectors:

          4x XLR/TRS Combo Jack Line / Mic Input
          1x 1/4" TRS HI-Z input
          2x XLR/TRS Combo Jack for Stereo Line Input
          1x Stereo RCA Input
          1x 3.5 mm Stereo Input
          1x Wireless Stereo Bluetooth® Audio Input
          1x 1/4" Foot Switch Input
          1x XLR MIX OUT Output
          1x XLR AUX OUT Output

  • Enclosure: Sub: 15 mm plywood
  • Column: Composite
  • Pole: Aluminum
  • Grille: Steel with black or white powder coat
  • Color: Black or white
  • Dimensions (HxWxD) mm (in): Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)
  • Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)
  • Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)
  • Net weight: Sub: 34.9 lb (15.8 kg)
  • Column: 6.0 lb (2.7 kg)
  • Pole (2 pcs): 3.1 lb (1.4 kg)
  • Bag for column and pole: 1.9 (0.85 kg)
