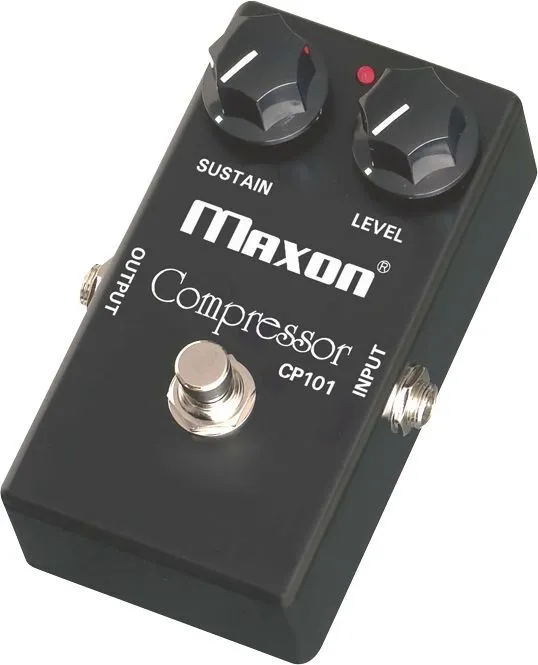

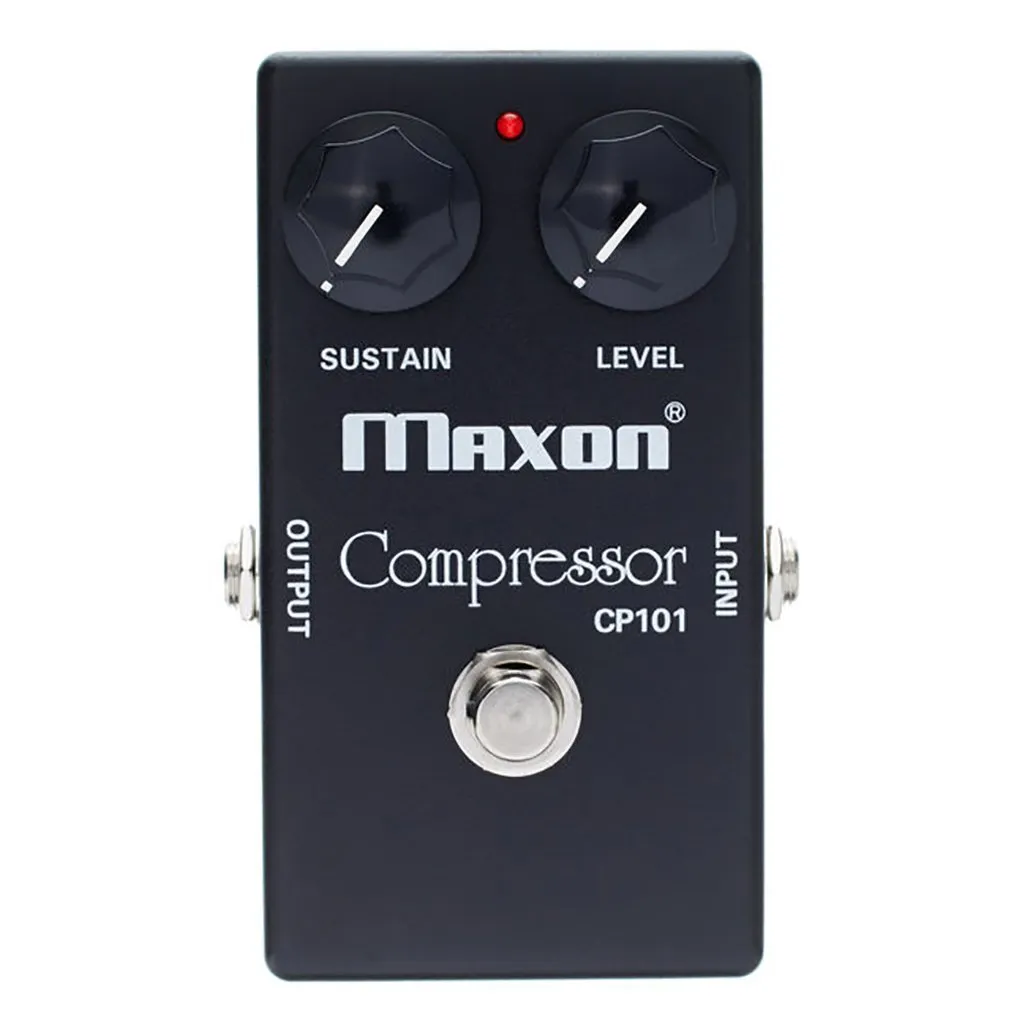

Maxon CP101 Compressor Pedal

SKU: MAXCP101

$415.00
RRP $459.00
SAVE $44.00
Share:
  • GOLD COAST MUSIC
  • Only 1 Left!
  • SYDNEY WAREHOUSE
  • Out Of Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



In Stock




The CP101 Compressor provides clean, smooth compression with ultra-low noise and incredible transparency. The CP101's 4:1 compression ratio is so subtle that it's easy to forget the unit is on ­ until you turn it off, that is. While it is on you will notice note-to-note levels that are smoother and more consistent, chords and arpeggios that are tighter and more focused, and when used with an overdriven amp, sustain that will last for days. Best of all, you'll notice minimal coloration to your guitar signal and less of the note-attack alterations so common to other compressors. At the heart of the CP101's circuit sits an HTV #P873 CdS (Cadmium Sulfur) Photocoupler. This light-sensitive component varies resistance based on the input signal to control the amp gain, increasing gain as the input signal weakens. Most other current-production compressors accomplish this task using a VCA (voltage controlled amplifier), but the multiple transistors packed into a VCA inevitably lead to high noise levels, which means lots of "hiss" from your rig. The CP101's optical circuit keeps the noise-floor low - so low that you can run the unit after a distortion and still retain near-silent operation. With its ultra low-noise level, transparent operation and natural playing response the Maxon CP101 is the perfect compressor for players who hate using compressors.

Specifications:

Input Impedance: 500K Ohms

Input Jack: 1/4 inch standard phone jack

Output Impedance: 10K Ohms

Output Jack: 1/4 inch standard phone jack

Output: 1

Controls: Sustain, Level

Switch: Normal/Effect

Max Input Level: 2 dBu

Max Output Level: 0 dBu

Noise (IHF-A): -110 dBu

Max Compression: 42 dB

Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor

Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)

Current Consumption: 11 mA (9V) / 12 mA (10 V)

AC Adaptor: AC210N (option) Input: AC120V Output: DC9V/200 mA Center - / Sleeve +)

Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)

Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)

Weight: 270 g

Accessories: 9V Manganese dry cell battery (S-006P) x 1

Non-skid pad: x 1

Warranty Card: x 1

User's Manual: x 1

SKU MAXCP101
Brand Maxon
