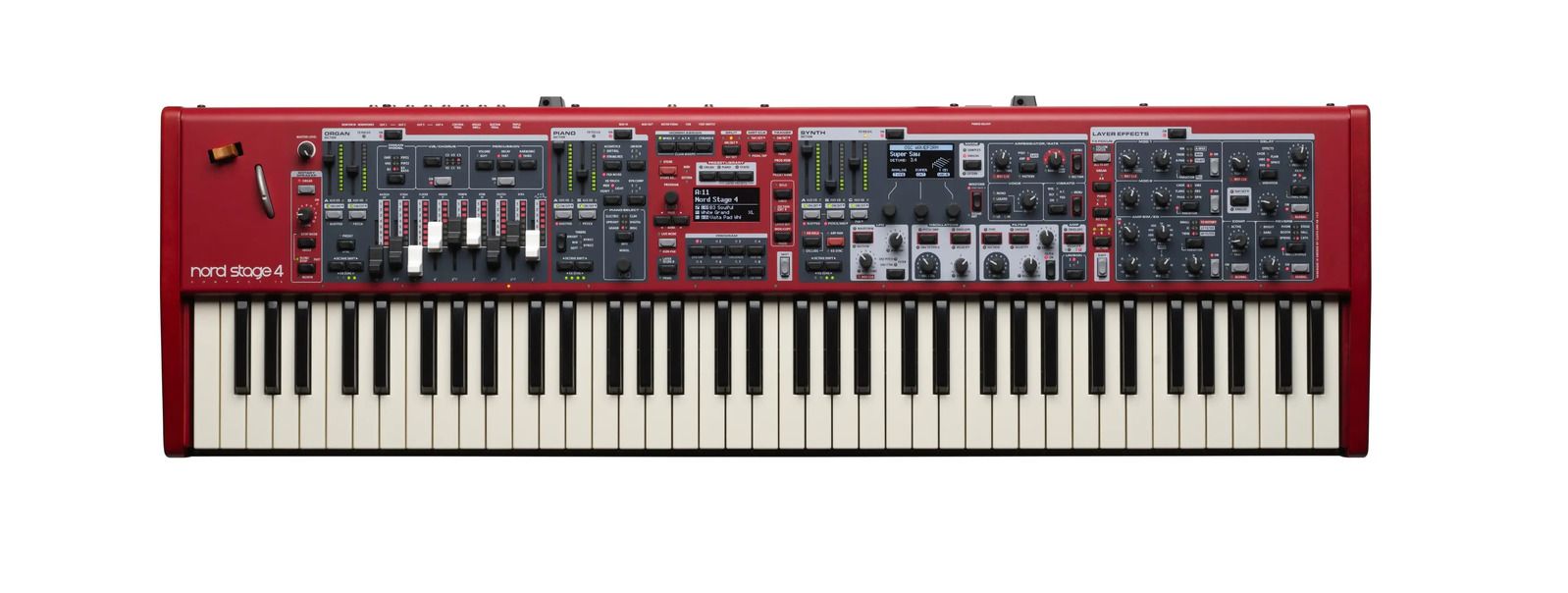

Nord Stage 4 Compact Stage Keyboard

73-note Semi-Weighted Waterfall keyboard

SKU: 25NORDSTAGE4COMPACT

$6,199.00
RRP $7,099.00
SAVE $900.00
Share:
  • GOLD COAST MUSIC
  • Only 1 Left!
  • SYDNEY WAREHOUSE
  • Out Of Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



In Stock






THE NEW EXPERIENCE

The Nord Stage 4 features a brand new panel design with dedicated LED faders for each Layer, providing exceptional overview and flexibility when creating sounds and performing live. The new Preset Library is packed with inspiring ready-to-use Piano, Synth and Organ sounds for quick and smooth patch creation.

The Layer Scene lets you seamlessly switch between two different sound setups at the touch of a button. Adding a powerful new Effect section coupled with versatile pedal options and a premium Triple Sensor keybed, the Nord Stage 4 offers a new level of musical expression.

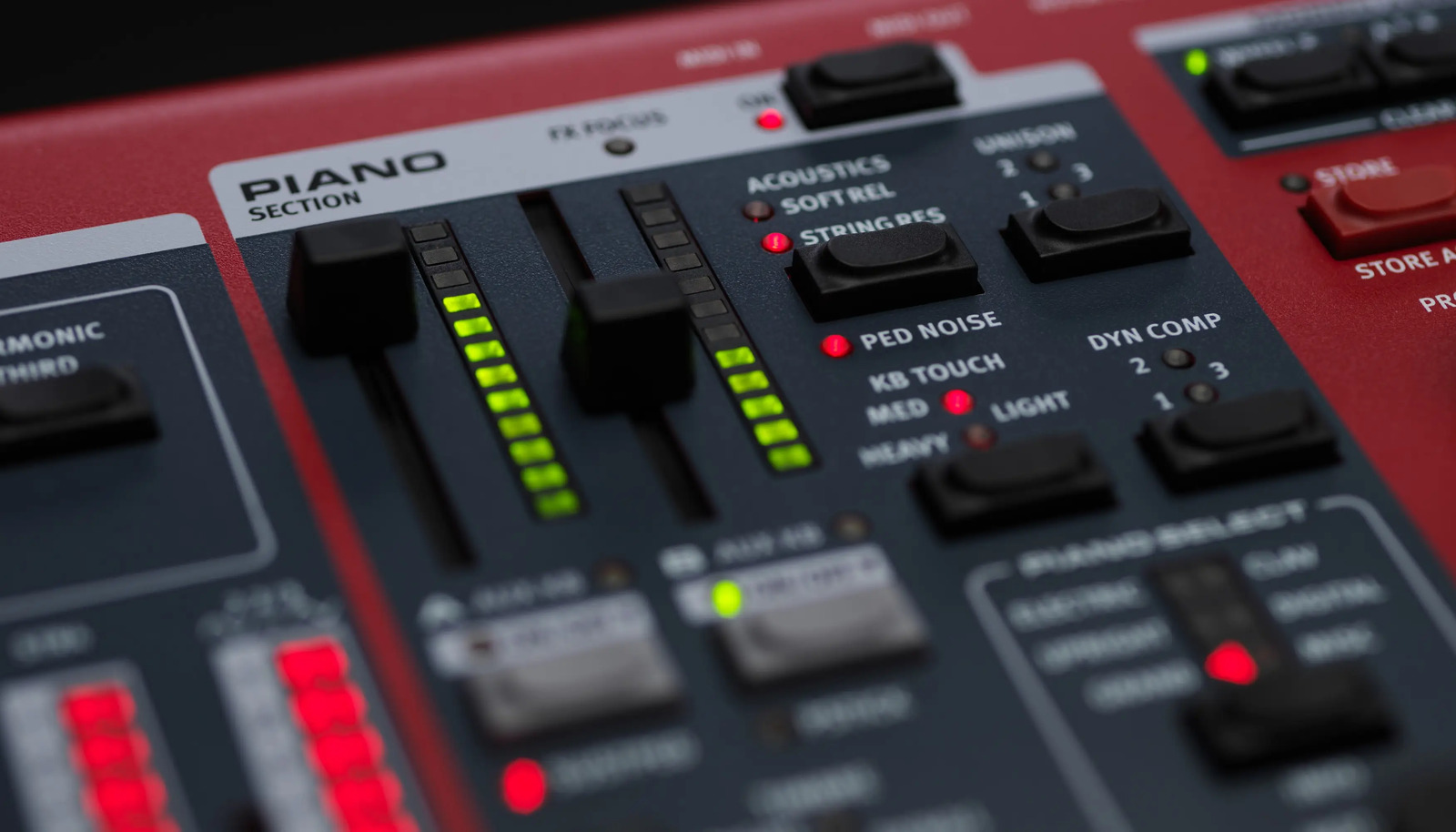

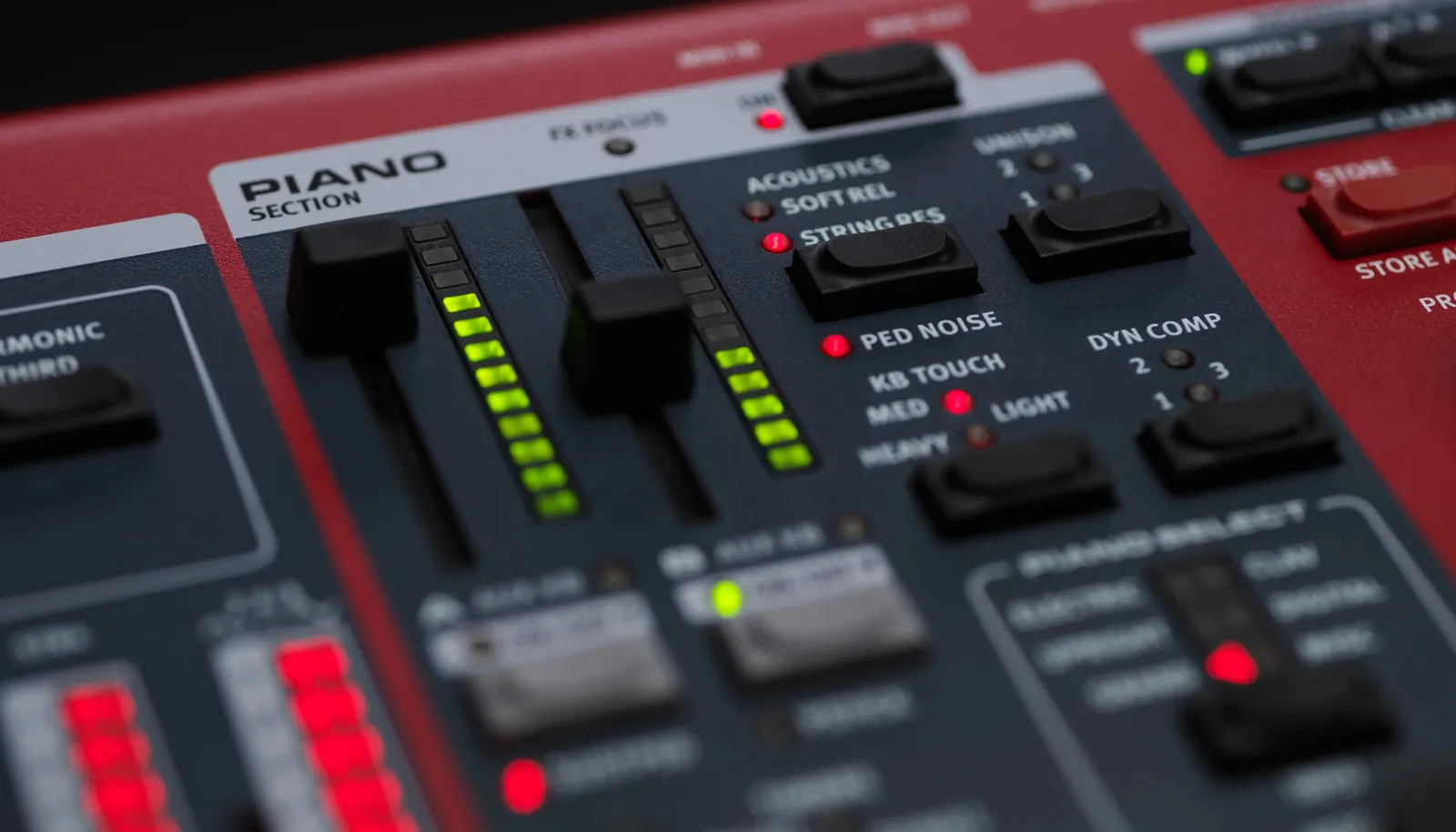

THE PIANO
The Nord Stage 4 comes with a new enhanced collection of Grands, Uprights and Electric Pianos from our exclusive Nord Piano Library combined with new features such as Dynamic compression and Unison.

•  Enhanced collection of Uprights, Grands, EPs and more

•  Dynamic Compression

•  Unison feature

•  Creative Timbre presets

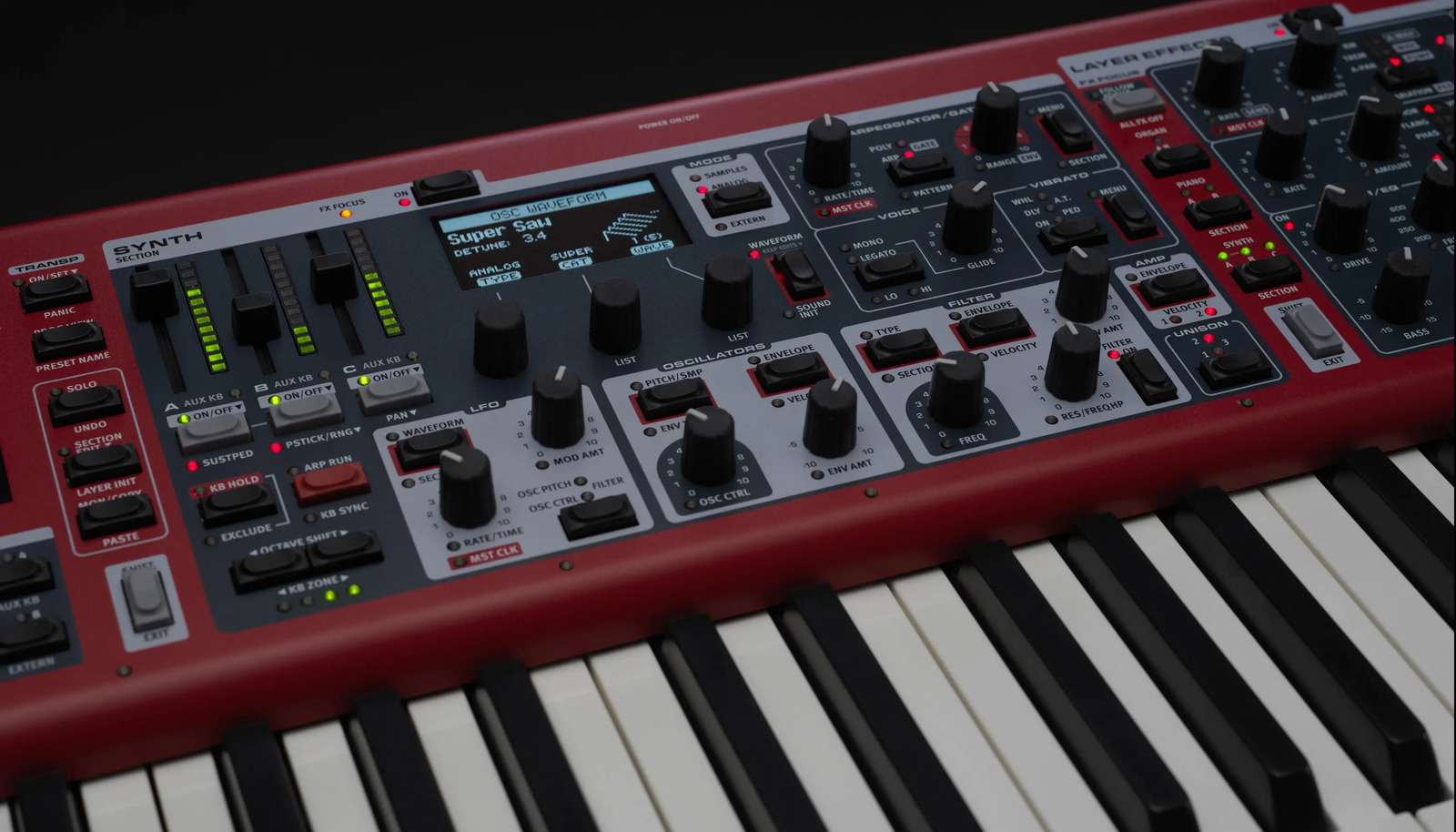

THE SYNTH
The Synth section with its three independent Layers is based on the powerful Nord Wave 2 Synth Engine, including Virtual Analog synthesis, Samples, FM and Digital Waves. An extensive new collection of samples from the Nord Sample Library offers a broad sonic palette of Strings, Bass, Choirs, Guitars and much more. The advanced Arpeggiator features new Polyphonic, Gate and Pattern modes and can be used for a huge variety of rhythmic applications with customizable patterns.

•  Nord Wave 2 Synth Engine

•  3 independent Synth Layers

•  Doubled sample memory

•  Enhanced samples with Tru-Vibrato, Unison and Round Robin

•  Extensive real time controls

•  Advanced Arpeggiator with Polyphonic, Gate and Pattern modes

•  Extern mode for advanced MIDI control

THE ORGAN

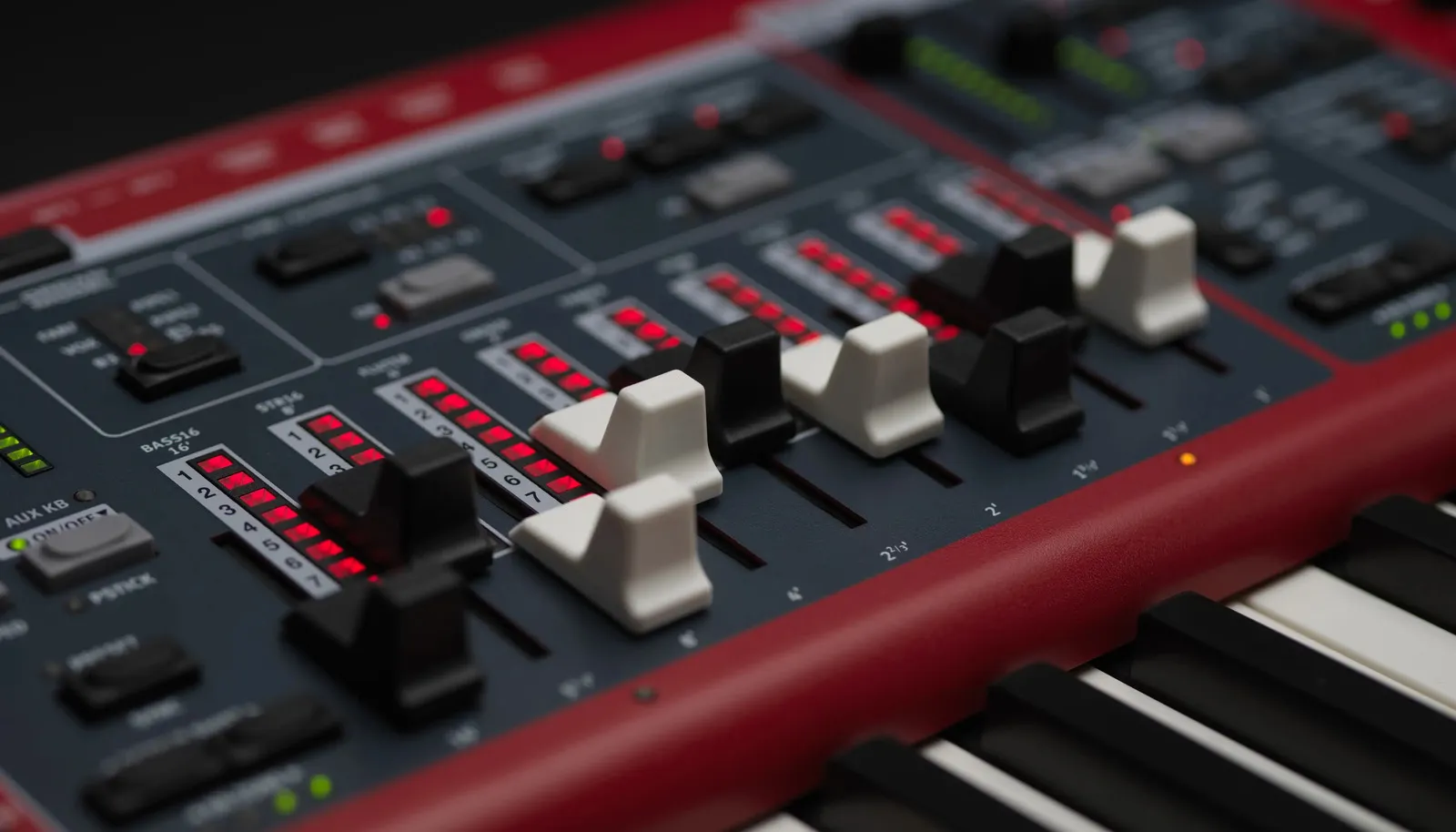

The Organ section features our award-winning simulations of 83 Tonewheel, 83 Bass, classic Vax and Farfisa as well as two Pipe Organ models. All Stage 4 models are equipped with our new Physical drawbars with LED indicators for optimal hands-on experience and overview.

•  Award-winning organ simulations of B3, Vox/Farfisa and Pipe Organ models

•  Physical drawbars with LED indicators

•  New B3 Bass mode

•  Drawbar Live mode

•  Model 122 Vintage Rotary Speaker with normal or close mic positions

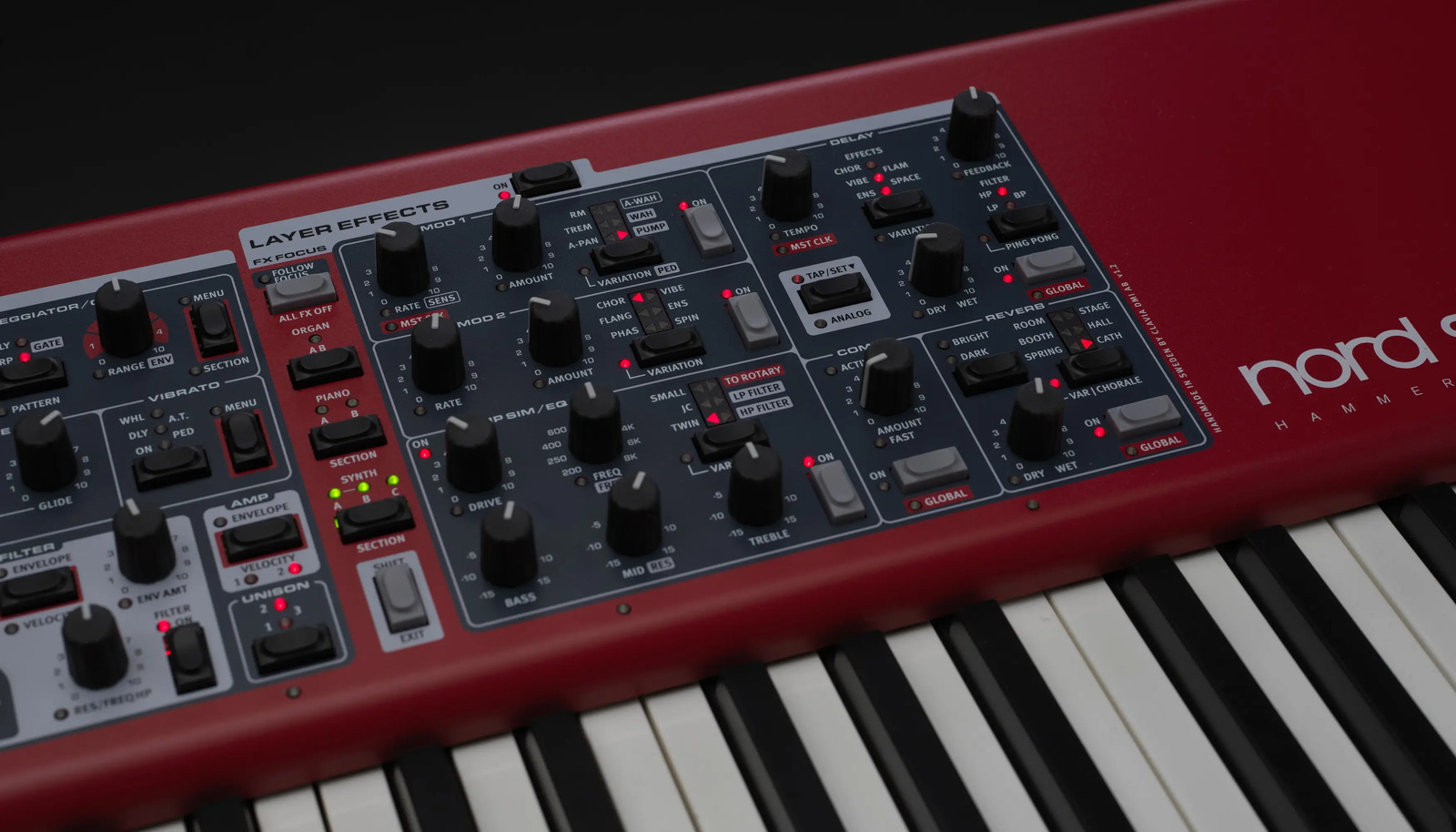

THE EFFECTS
The Nord Stage 4 has a powerful new Effect section offering a complete setup of Effects for each Layer. The extensive range of Effects includes a new Pump effect for tempo synced or pedal controlled side chain modulation, a new Spin effect and brand new variations of Reverb, Delay, Amps and Modulation effects.

•  Dedicated Effect section per Layer

•  New Variations for Modulation, Amp, Delay and Reverb Effects

•  New Spring, Booth and Cathedral Reverb

•  New Pump effect

•  New Spin effect

•  New Flam and Space Delay



THE MODELS

The Nord Stage 4 comes in three models:

Nord Stage 4 88 with a fully weighted Triple Sensor keybed (A-CJ with aftertouch and Physical Drawbars with LED indicators.

Nord Stage 4 73 with a fully weighted Triple Sensor keybed (E-E) with aftertouch and Physical Drawbars with LED indicators.

Nord Stage 4 Compact with a 73-note Semi Weighted Waterfall Triple Sensor keybed (E-E) with aftertouch and Physical Drawbars with LED indicators.

GENERAL

  • Master Level Control
  • Wooden Pitch Stick
  • Modulation Wheel
  • 400 Programs - 8 Banks with 10 Pages each. Each Page has 5 Program locations
  • Song Mode - 8 Banks with 50 Songs each (400 Songs in total). Each Song has 5 Song Parts (Programs).
  • 5 Live Buffers
  • 2 Individual Slot Setups
  • 3 Morph sources (Modulation Wheel, Control Pedal, Aftertouch)
  • Global Mono output
  • Programmable Transpose +/- 6 semitones
  • Master Clock functionality with manual, external and tap-tempo rate control
  • Internal and MIDI clock source
  • MIDI over USB functionality
  • Level control
  • Aftertouch
  • Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
  • 3 Split Point width (crossfade) options: Lrg, Sml or Off
  • Keyboard Zones editor mode



ORGAN SECTION

  • Nord C2D B3 Tone wheel Organ simulation
  • Vox Continental and Farfisa models
  • 2 Digital Pipe Organ models
  • 9 digitally controlled Drawbars
  • Physical Drawbars (Compact model only)
  • Drawbar Live mode (Compact model only)
  • Percussion controls
  • Vibrato / Chorus control



PIANO SECTION

  • 2 GB memory for Piano sounds
  • All sounds can be replaced using Nord Sound Manager (Mac/Win)
  • 120 Voice Polyphony
  • Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
  • 4 Selectable Velocity Curves
  • Dedicated Piano filters
  • Clavinet EQ controls
  • String Resonance (Generation 2) on acoustic Grand Pianos and Uprights
  • Selectable Soft Piano Release
  • Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
  • Layer (Slot) Detune functionality
  • 2-Part Multitimbral
  • Two Drawbar Presets per Slot
  • 2-Part Multitimbral (2 manuals)



SYNTH SECTION

  • Nord Lead A1 Synth Engine with Sample Playback
  • Dedicated OLED Display for Oscillator section
  • 480 MB Memory for Nord Sample Library 3.0
  • All samples can be replaced using Nord Sound Manager (Mac/Win)
  • 34 Voice polyphony
  • Oscillator Types: Classic, Wavetable (Wave), Formant, Super Wave (S-Wave) and Sample
  • Oscillator Configurations: Pitch, Detune*, Shape*, Sync*, Sine, Triangle, Square, Saw, Bell and Noise Mix, FM* and Ring Mod
    *=Not available for Sample/Superwave
  • Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
  • Filter Drive: Off, 1, 2 and 3
  • Filter Tracking: Off, 1/3, 2/3 and Full
  • 3 Unison modes
  • Amplitude envelope (Attack, Decay, Sustain) with Velocity control
  • Modulation envelope (Attack, Decay, Sustain) with Velocity control
  • LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
  • 400 (8x50) Synth Preset locations with Synth Preset categories
  • Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves.
  • LFO and Arpeggiator synchronizable to Master Clock
  • 2-Part Multitimbra



EFFECTS

  • Effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
  • Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
  • Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP) and panel selectable Analog mode.
  • 3 types of Speaker simulations, JC, Twin and Small
  • Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
  • Tube amp simulation with adjustable overdrive
  • 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
  • Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
  • Extended Morphable Parameters - (Filter Resonance, Reverb Dry/Wet, Delay Feedback, Amp Drive)
  • Effect rates/tempo can be synchronized to the Master Clock
  • Compressor with Fast Mode
  • Reverb - 6 algorithms with Bright Mode



KEYBOARD

  • Nord Stage 3 88: 88-key Velocity sensitive Hammer Action keyboard with Aftertouch. Range: A-C
  • ​Nord Stage 3 HP76: 76-key Velocity sensitive Hammer Action Portable keyboard with Aftertouch. Range: E-G
  • Nord Stage 3 Compact: 73-key Velocity sensitive Semi Weighted Waterfall keyboard with Aftertouch. Range: E-E



CONNECTIONS

  • 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
  • Stereo Headphone output - ¼", 6,35 mm stereo jack
  • 1 Monitor input - 1/8", 3,5 mm stereo jack
  • Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
  • Sustain input compatible with Nord Triple Pedal (sold separately)
  • Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
  • Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
  • Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
  • Program Change Pedal input - ¼", 6,35 mm jack. Use a momentary two-button pedal like e.g. Boss FS-6, Boss FS-7 etc.
  • MIDI In - 5 pin DIN connectors
  • MIDI Out - 5 pin DIN connectors
  • USB - type B connector for USB MIDI, Software Update and Sound Transfer
  • Power Cord with IEC C14 connector

Nord Stage 2 Connections



OPTIONAL ACCESSORIES

  • Nord Keyboard Stand EX
  • Nord Soft Case
  • Nord Triple Pedal
  • Nord Music Stand EX
  • Nord Half-Moon Switch (for Compact model)



DIMENSIONS

  • Nord Stage 3 88: 1287 mm (50.7"), 118 mm (4.7"), 334 mm (13")
  • Nord Stage 3 HP76: 1122 mm (44"), 127 mm (5"), 347 mm (13,6")
  • Nord Stage 3 Compact: 1070 mm (42"), 104 mm (4"), 302 mm (12")



WEIGHT

  • Nord Stage 3 88: 19 kg (41.8 lb)
  • Nord Stage 3 HP76: 12,5 kg (27.5 lb)
  • Nord Stage 3 Compact: 10 kg (22 lb)
SKU 25NORDSTAGE4COMPACT
Barcode # 834035001653
Brand Nord
