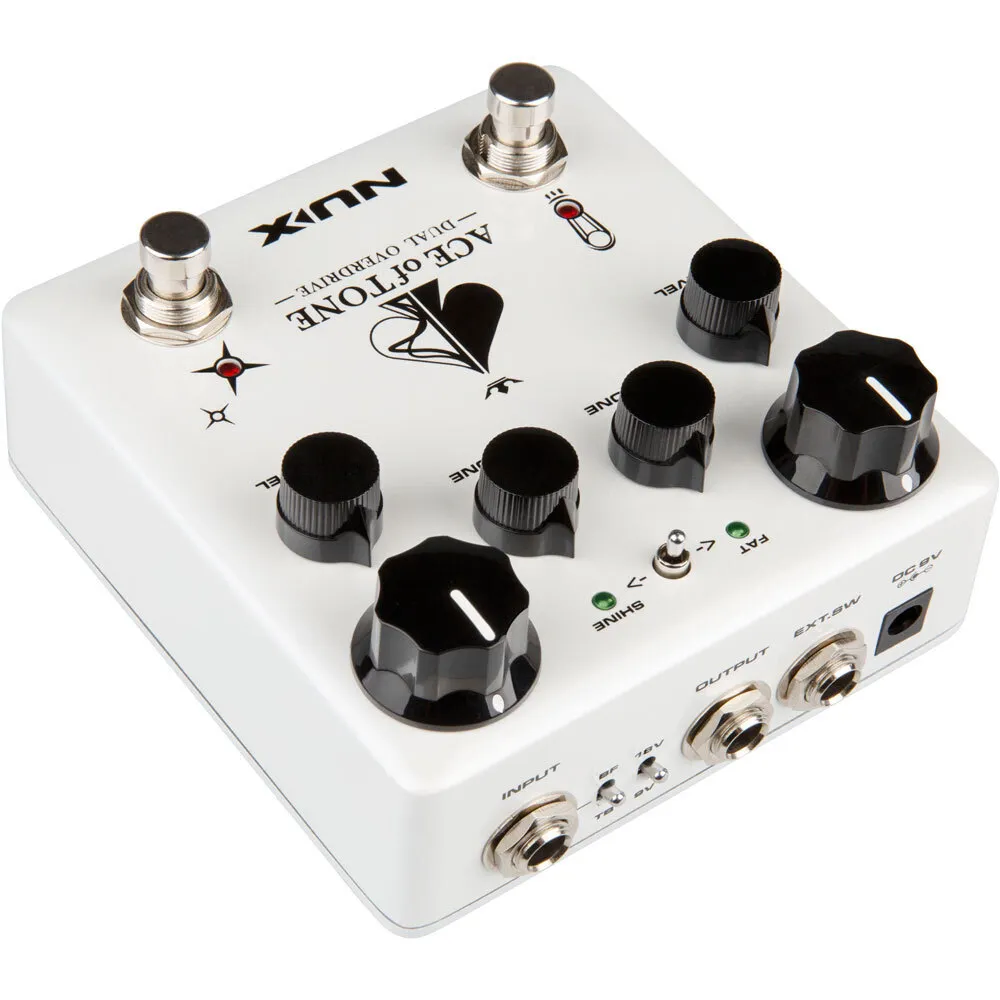

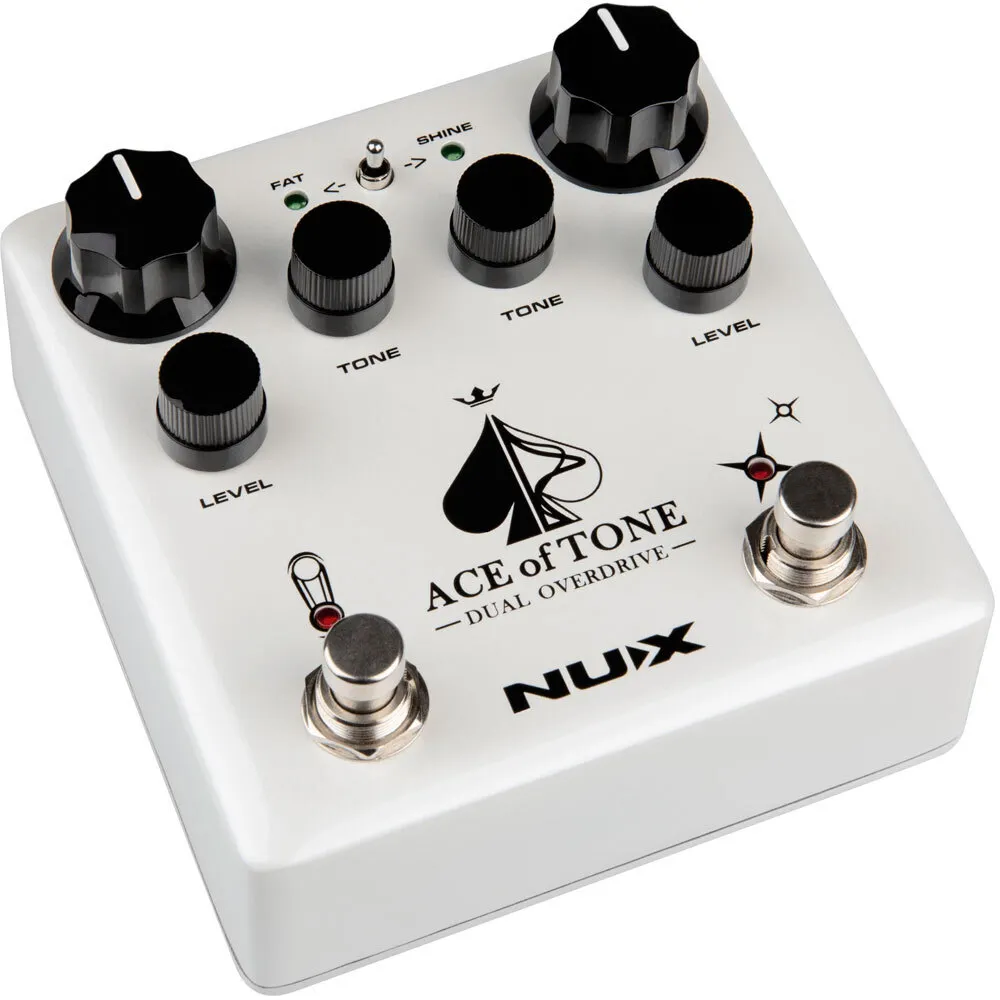

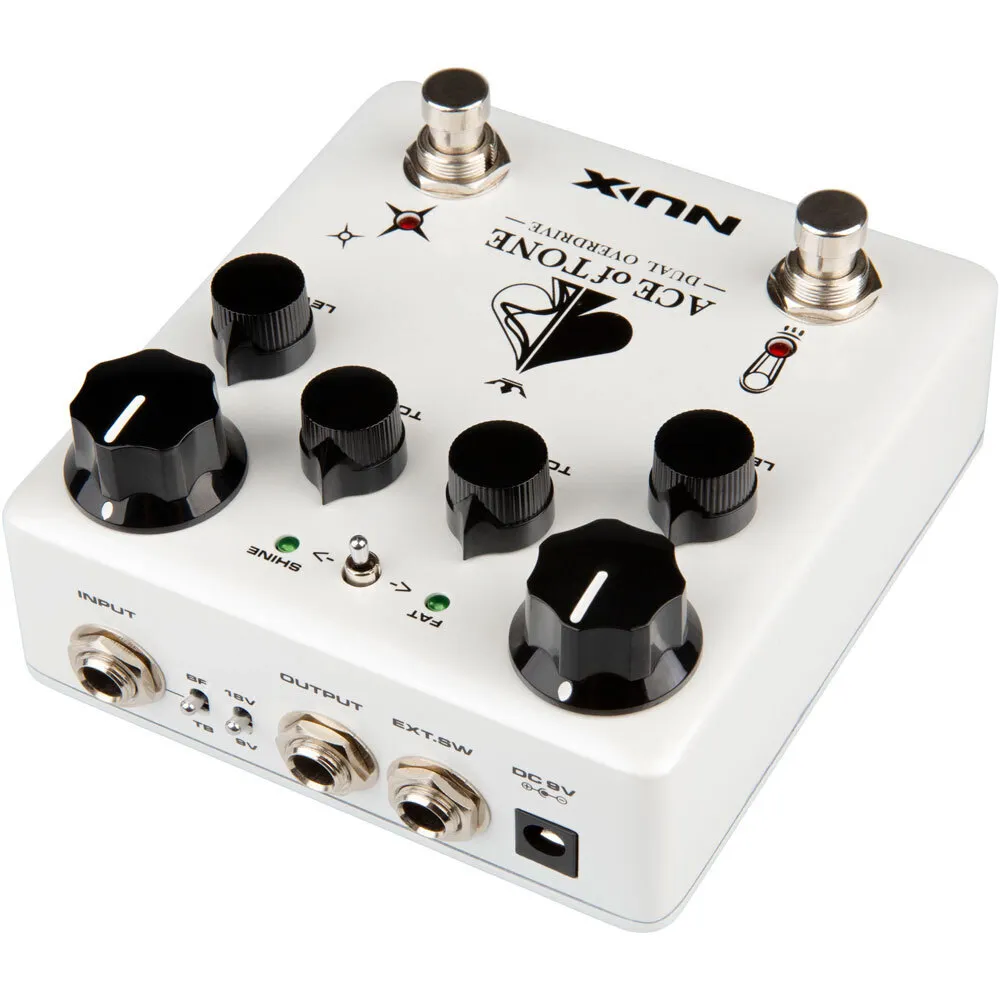

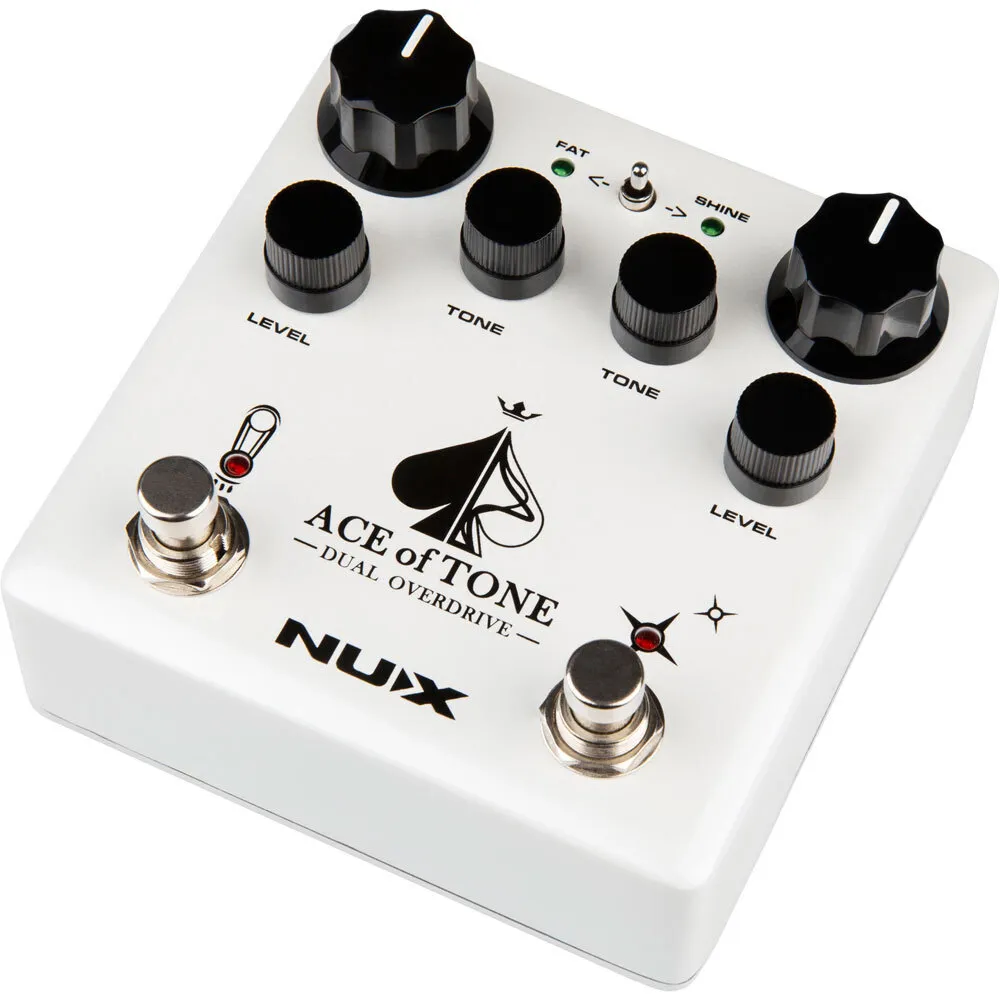

NU-X NXNDO5 Verdugo Series Ace Of Tone Dual Overdrive Effects Pedal

SKU: NXNDO5

WAS $219.00
RRP $249.95
NOW $209.00
SAVE 16%!
Sale Ends in
23:59 pm, 24 December 2024
Share:
  • GOLD COAST MUSIC
  • Only 1 Left!
  • SYDNEY WAREHOUSE
  • In Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



In Stock




ACE of TONE is a dual overdrive pedal stacked with Tubeman MKII and Morning Star. Why? Because great guitarists love 2 overdrives to stack their tone.

In the left corner, Tubeman with FAT mode. Tubeman offers way more clarity and gain than any classic Tubescreamer, and we modified the circuit with a useful secondary function by simply holding the foot switch - FAT mode. It cranks way more bass response to enhance the low-end yet makes the tone warmer!

In the right corner, Morning Star with SHINE mode. Morning Star is based on legendary Bluesbreaker circuit: very transparent, low gain drive. Like our Morning Star, it also features a simple FOOT SWITCH HOLD to engage the iconic SHINE mode. In SHINE mode, you can get way more treble sound to make your tone crystal-clear.

Specifications:

  • Input Impedance: 2.2MΩ
  • Output Impedance: 1kΩ
  • Power: 9V DC (Negative tip,Optional ACD-006A adapter)
  • Current Draw: Less than 100mA
  • Dimensions: 105mm (L) x 115mm (W) x 58mm (H)
  • Weight: 440g

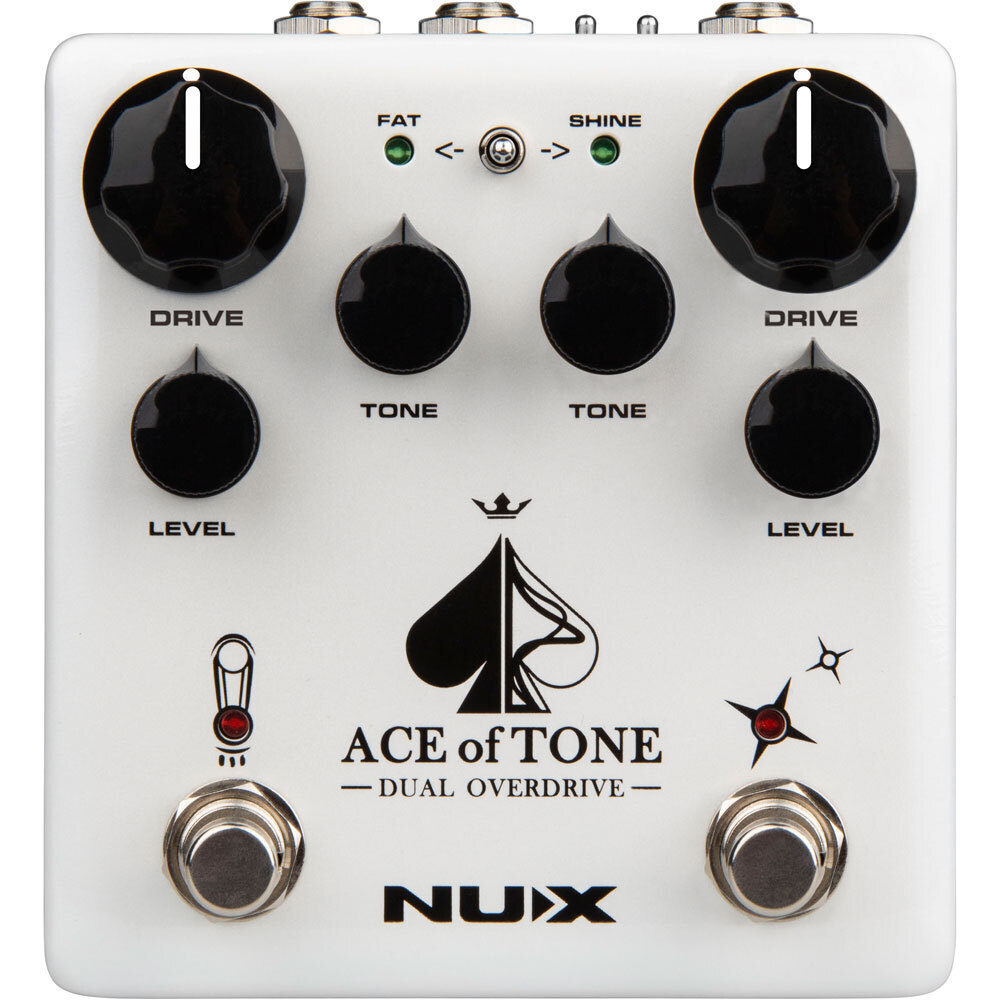

Control Panel

Left Side (Tubeman)

  • DRIVE Knob: Controls the gain of Tubeman circuit.
  • TONE Knob: Controls the treble frequency of Tubeman circuit.
  • LEVEL Knob: Controls the volume of Tubeman circuit.
  • Footswitch: Engage/Disengage Tubeman circuit. Hold it for 1 second, you can turn on/off FAT mode.
  • FAT Indicator: While you engaged FAT mode, the indicator will turn on.

Right Side (Morning Star)

  • DRIVE Knob: Controls the gain of Morning Star circuit.
  • TONE Knob: Controls the treble frequency of Morning Star circuit.
  • LEVEL Knob: Controls the volume of Morning Star circuit.
  • Footswitch: Engage/disengage Morning Star circuit. Hold it for 1 second, you can turn on/off SHINE mode.
  • SHINE Indicator: While you engaged SHINE mode, the indicator will turn on.
  • Routing Toggle Switch: You can adjust the order from Morning Star to Tubeman or Tubeman to Morning Star. It’s very useful to stack the sound.

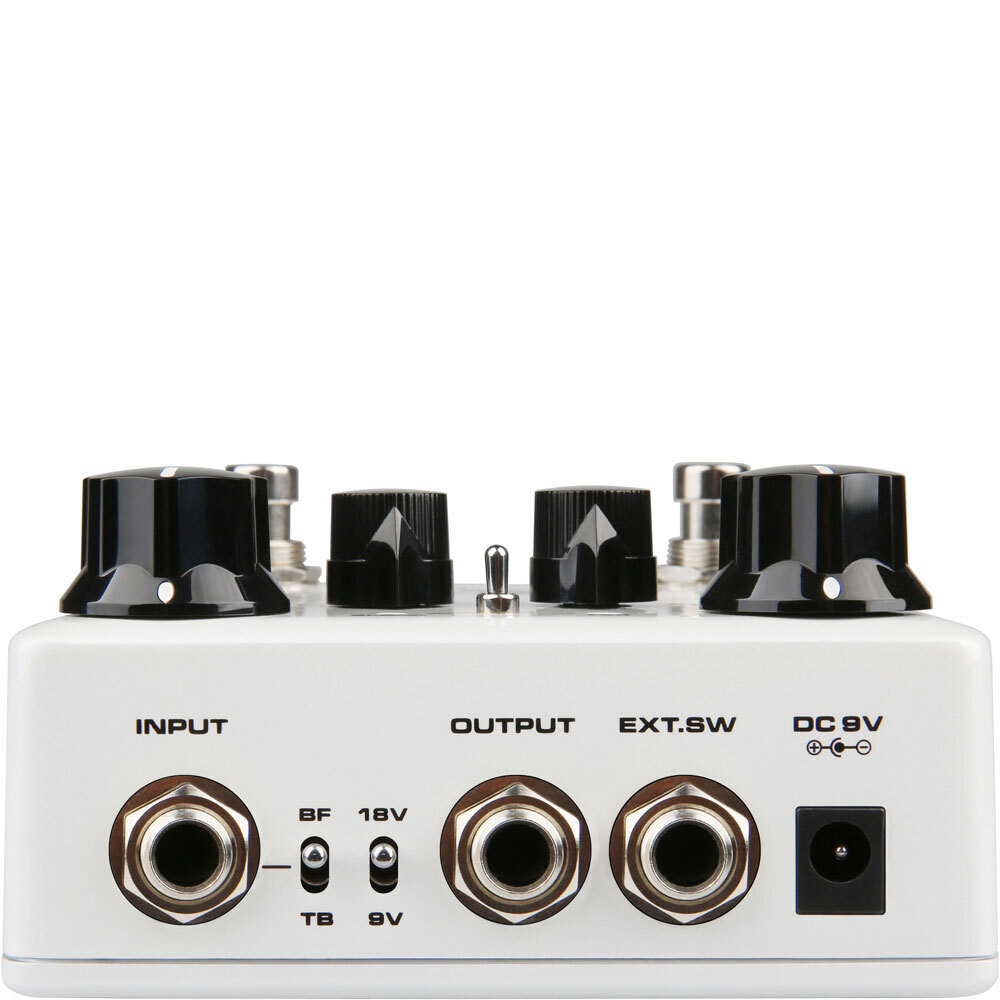

Inputs / Outputs

  • Input: Connect your guitar side to INPUT jack.
  • Output: Connect the OUTPUT signal to amp side.
  • EXT. SW: You can use external foot controller (like NUX NMP-2) to remote this pedal.
  • BF / TB Toggle Switch: BF means Buffer-Bypass, TB means True-Bypass. You can choose BF while you connect with several pedals in your signal chain to solve tone-loss situation.
  • 18V/9V Toggle Switch: ACE of TONE can double the voltage internally while you toggle to 18V position, that can increase dynamic range and headroom.
  • DC Jack Use ONLY: 9V Negative Tip power with 100mA.
SKU NXNDO5
Brand NUX
