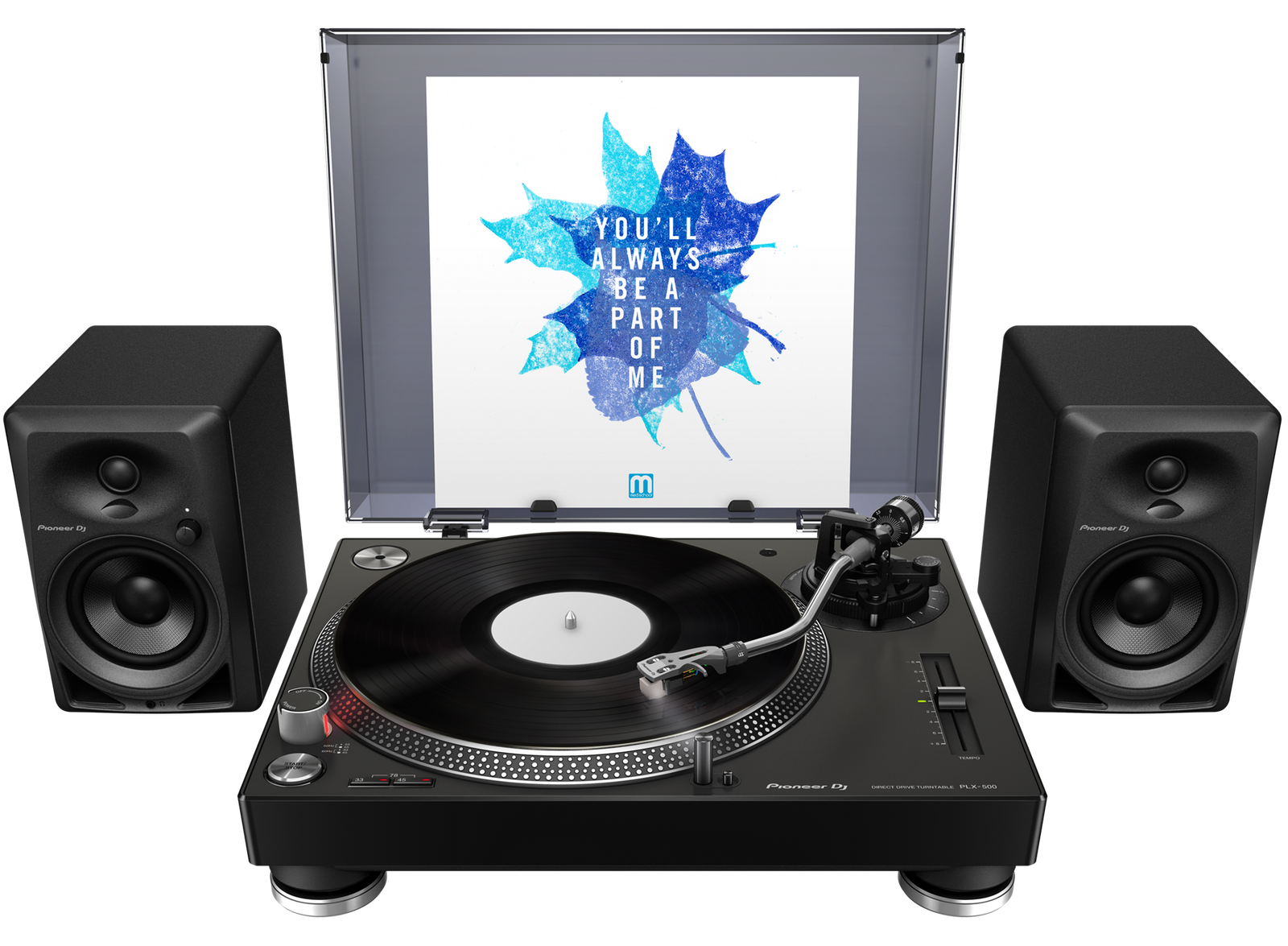

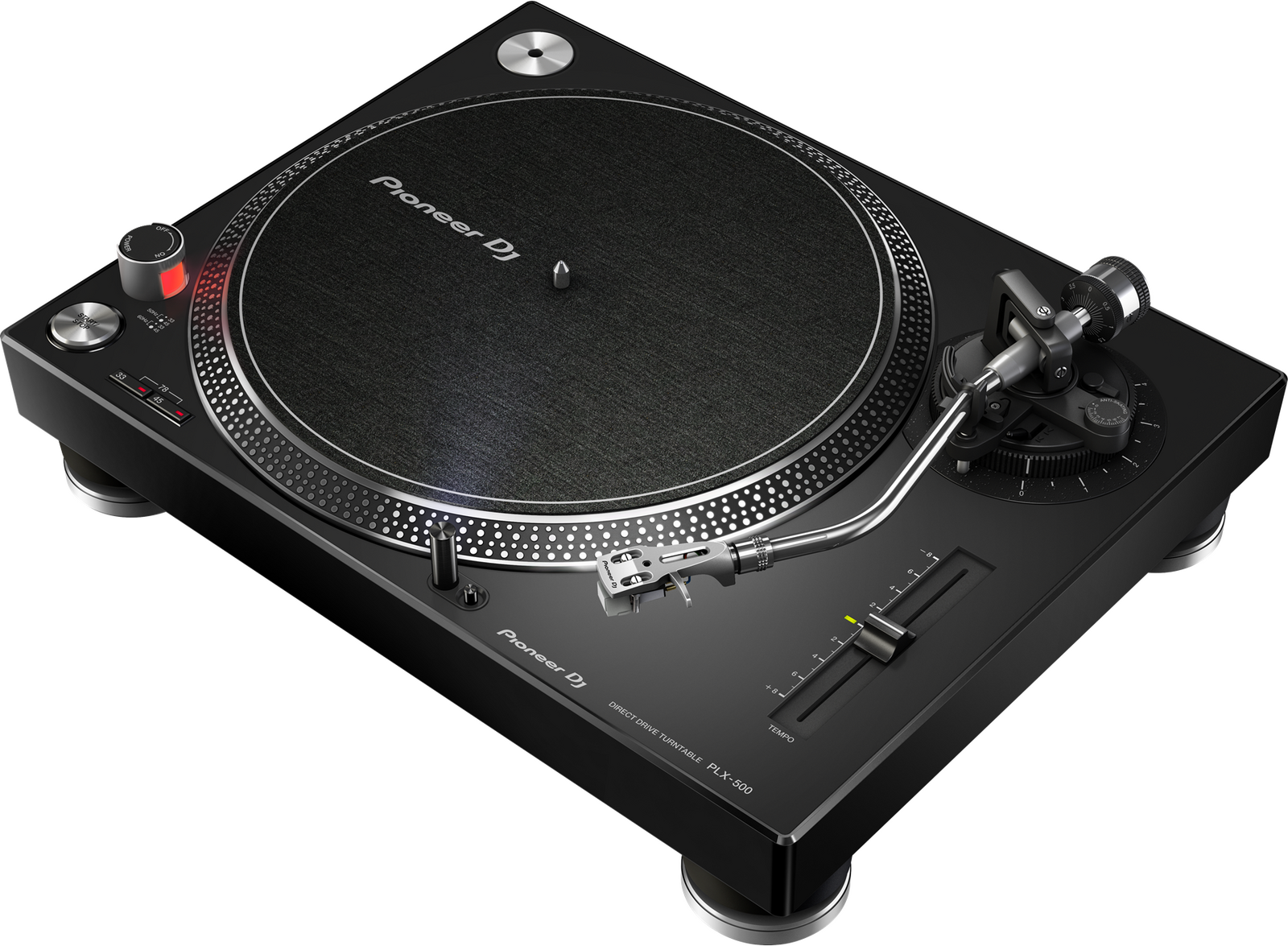

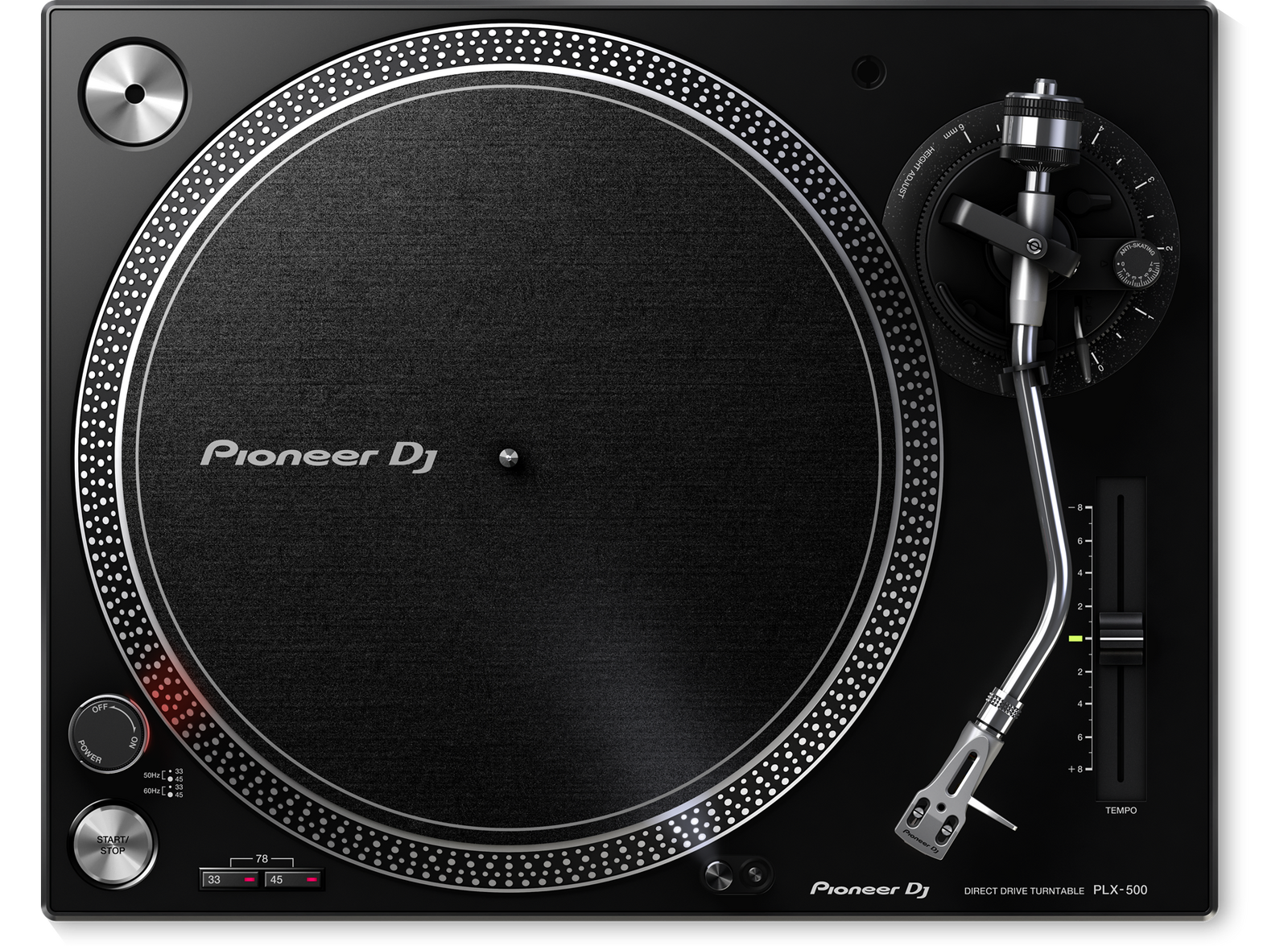

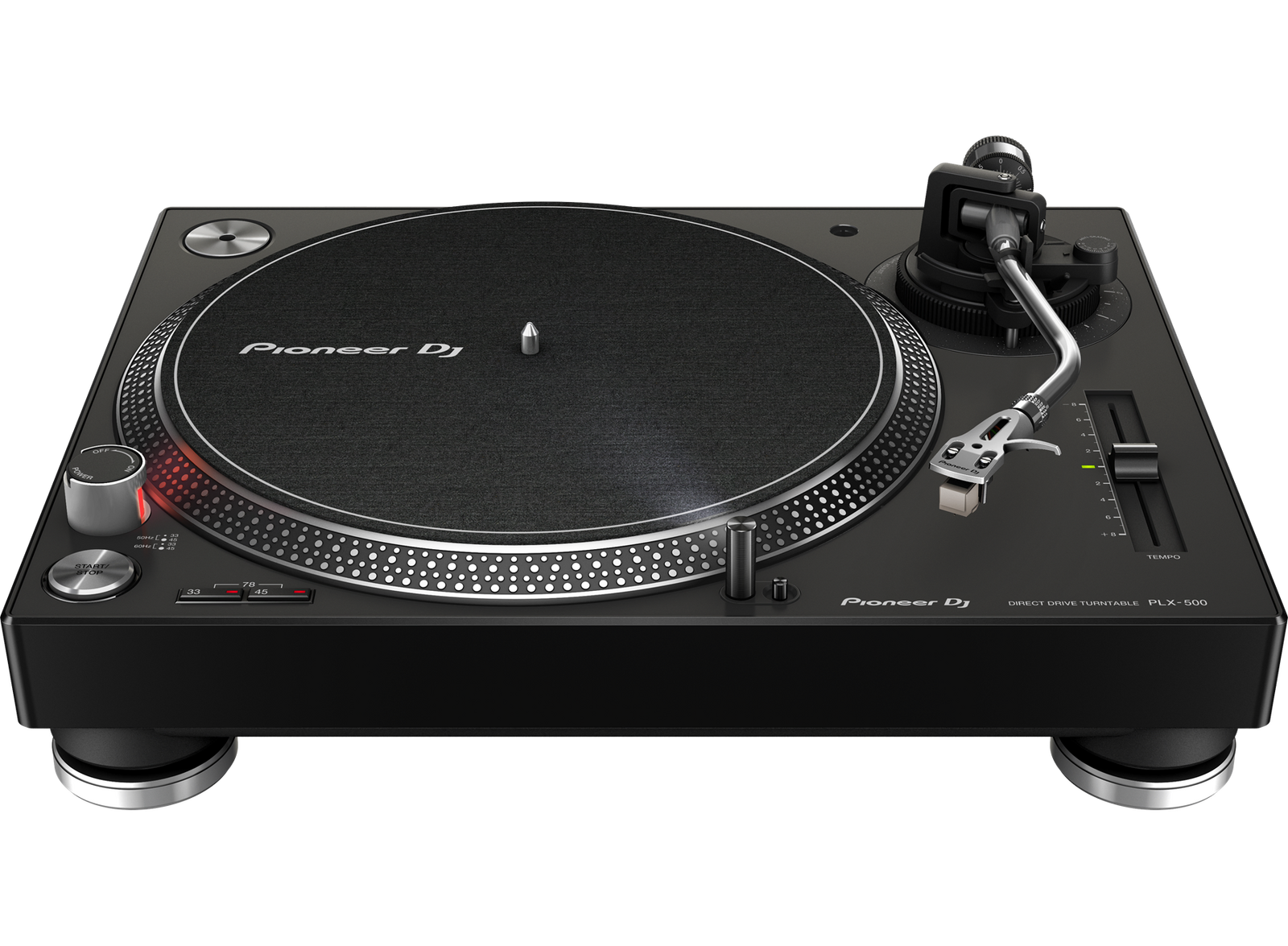

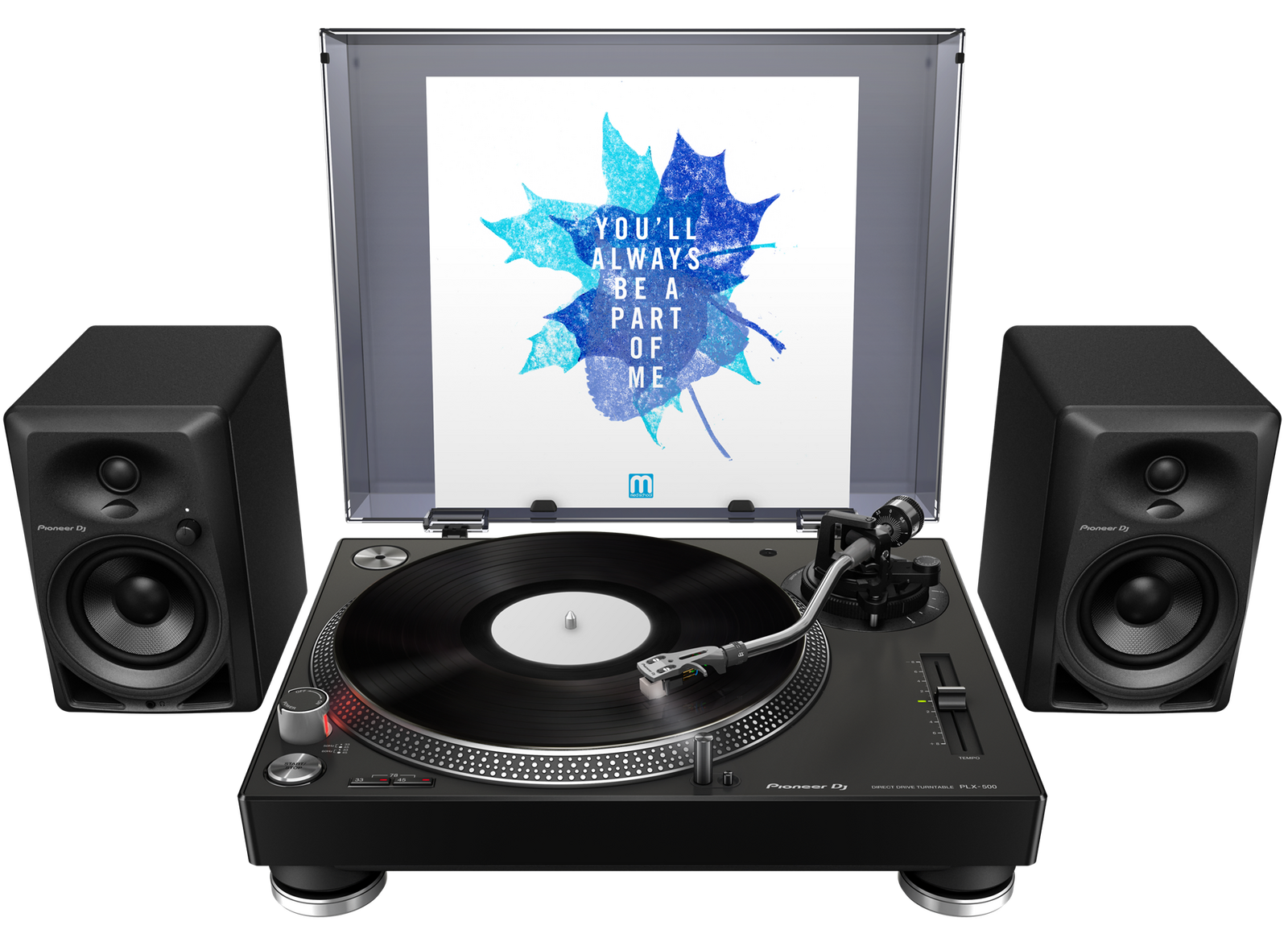

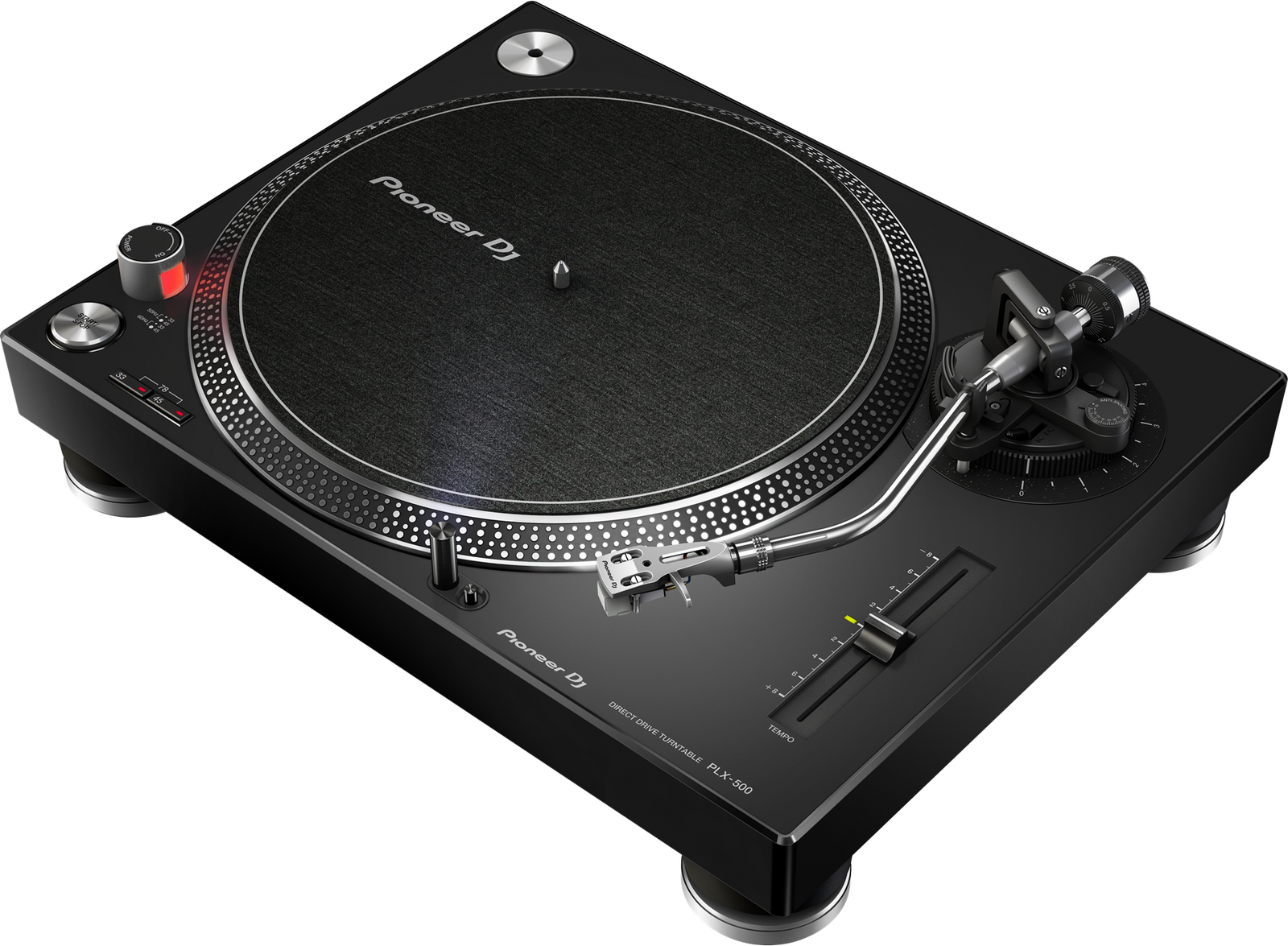

Pioneer DJ PLX-500 High-Torque Direct Drive Turntable - Black

SKU: PDJ-PLX-500-BK

$699.00
RRP $819.00
SAVE $120.00
Share:
  • GOLD COAST MUSIC
  • Out Of Stock
  • SYDNEY WAREHOUSE
  • Out Of Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)






Whether you’re just getting into records, rediscovering a record collection long since buried away or simply adding a turntable to complete your system, the AT-LP60X fully automatic belt-drive turntable is an excellent choice. This affordable, easy-to-use turntable plays both 33-1/3 and 45 RPM records and, with its built-in switchable phono preamp, can be connected directly to your home stereo, powered speakers, computer and other components, whether they have a dedicated phono input or not.

An update of the popular AT-LP60, the ATLP60X features a redesigned tonearm base and headshell to improve tracking and reduce resonance. Noise is further reduced by the inclusion of an AC adapter that moves the AC/DC conversion outside of the chassis where its impact on the signal chain is limited.

Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the AT-LP60X’s Dual Magnet™ cartridge with replaceable stylus. The cartridge is integrated into the headshell for assured performance and ease of setup.

The turntable comes with a detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and a removable hinged dust cover.

Venture into Vinyl
Discover (or rediscover) the wonder of vinyl records. This affordable, easy-to-use turntable is the perfect entry into the world of analog audio.

Over 60 Years of Analogue Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Features:

  • Experience the high-fidelity audio of vinyl
  • Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
  • Anti-resonance, die-cast aluminum platter
  • Redesigned tonearm base and headshell for improved tracking and reduced resonance
  • Integral Dual Magnet™ phono cartridge with replaceable diamond stylus (ATN3600L)
  • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
  • Built-in switchable phono pre-amplifier for phono- or line-level output
  • Includes detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and removable hinged dust cover

Specifications:
Type - fully automatic
Motor - DC servo-controlled
Drive Method - Belt-drive
Speeds - 33-1/3 RPM, 45 RPM
Turntable Platter - Aluminium
Wow and Flutter - Less than 0.25% (WTD) @ 3 kHz (JIS)
Signal-to-Noise Ratio - >50 dB (DIN-B)
Output Level - Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain - 36 dB nominal, RIAA equalized
Power Supply Requirements - 115/230V AC, 60/50 Hz
Dimensions - 359.5 mm x 97.5 mm x 373.3 mm
Weight - 2.6 kg
Accessories Included - 3.5 mm (1/8") mini-plug (male) to dual RCA (male) output cable 45 RPM adapter Removable hinged dust cover

Accessories

  • PLX-500
  • Power cord
  • USB cable
  • Slip mat
  • Dust cover
  • Adapter for EP records
  • Head shell (with cartridge)
  • Balance and shell weights
  • Audio adaptor cable:
    • 1 Stereo pin plug (female)
    • 1 Stereo mini plug (male)
  • Operating instructions

Specifications

Width

450 mm

Height

159 mm

Depth

368 mm

Weight

10.7 kg

Turntable

Drive Method

Servo-type direct drive

Platter

Aluminium, die-casting diameter: 332 mm

Motor

3-phase, brushless DC motor

Braking System

Electronic brake

Rotation Speed

33⅓, 45, 78 rpm

Rotation Adjustment Range

±8 %

Wow and Flutter

0.15% or less WRMS (JIS WTD)

Signal-to-Noise Ratio

50 dB

Starting Torque

> 1.6 kgf・cm

Start Time

Within 1 sec (at 33⅓ rpm)

Tone Arm

Arm Type

  • Universal type S-shape tone arm
  • Gimbal-supported type bearing structure
  • Static balance type

Overhang

16 mm

Effective Length

230.5 mm

Tracking Error

Within 3°

Height Adjustment Range

6 mm

Stylus Pressure Variable Range

0-4 g (1 scale 0.1 g)

Single Cartridge Weight

< 9.5 g

Cartridge type

VM

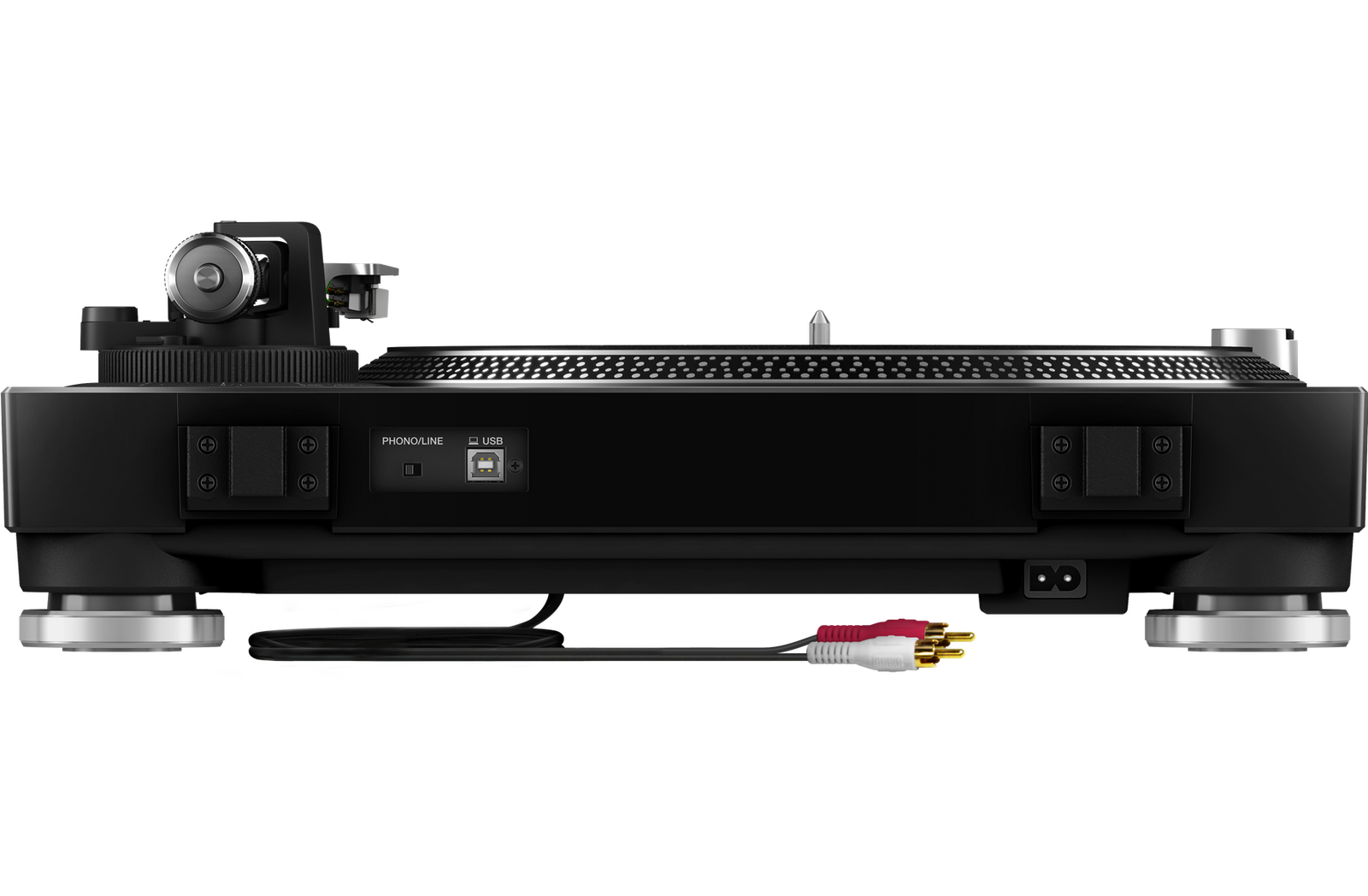

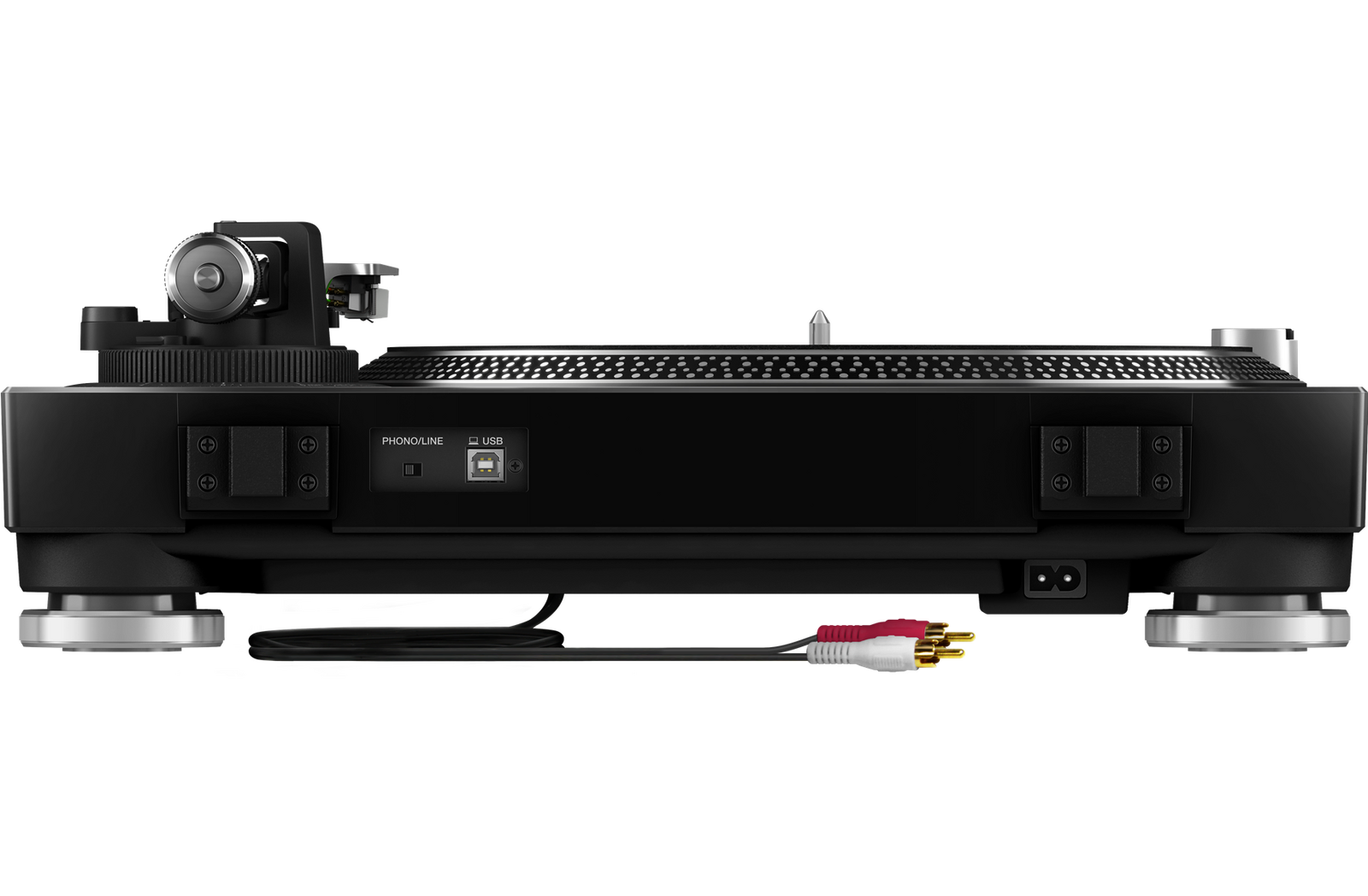

Terminals

USB

1 USB B port

Outputs

1 PHONO/LINE (RCA)



* The specifications and design of this product are subject to change without notice.



SKU PDJ-PLX-500-BK
Barcode # 4961310149574
Brand Pioneer
