sE Electronics DM1 Dynamite Active Inline Microphone Preamplifier

SKU: SEEL_DM1

WAS $199.00
RRP $209.95
NOW $188.00
SAVE 10%!
Sale Ends in
23:59 pm, 24 December 2024
Share:
  • GOLD COAST MUSIC
  • Out Of Stock
  • SYDNEY WAREHOUSE
  • 5+ In Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



(Orders dispatched in 1 to 3 business days from Sydney)




An inline preamp for explosive levels from all your dynamics & passive ribbons.

THE DM1 DYNAMITE: EXPLOSIVE LEVEL FOR ALL YOUR PASSIVE MICS.
Some mics need a LOT of gain – and not all preamps are up to the challenge. The DM1 DYNAMITE is an ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.

With a sophisticated class-A design and specially-selected high-grade FETs, the DM1 has vastly lower output impedance and nearly half the noise of anything else on the market. Additionally, the gain it provides is always a consistent +28dB regardless of the connected load, thanks to its dedicated buffer amplifier.

The DM1 is the perfect way to boost the signal from a passive mic, reduce the likelihood of interference, and provide significantly improved level to your preamp – all without adding noise or coloration. Its output impendence is also the lowest in its class, allowing it to drive long cable runs while reducing susceptibility to RF interference, buzz and hum.

Reliable operation even in demanding on-stage applications in difficult environments is ensured by the roadworthy and slim all-metal design, robust construction, and high-quality manufacturing standards.

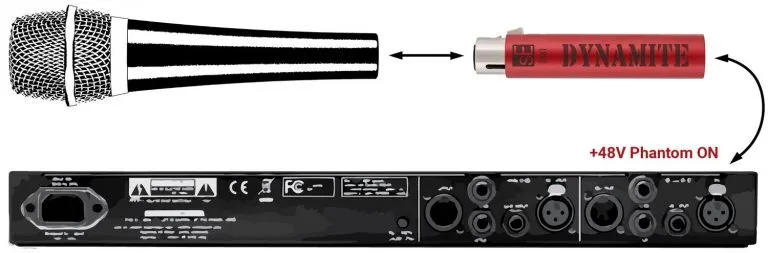

For optimum results, we recommend you plug the DM1 directly into your microphone’s output. If necessary, a cable can be used between the microphone and the DM1 – but the shorter the cable, the better the overall performance will be.

+28dB OF CLEAN, CONSISTENT GAIN, INDEPENDENT OF LOAD
designed for neutral, balanced sound quality

the perfect way to boost the signal of a passive microphone

gain stays consistent regardless of connected load

provides significantly improved level to your mic preamp for proper gain staging

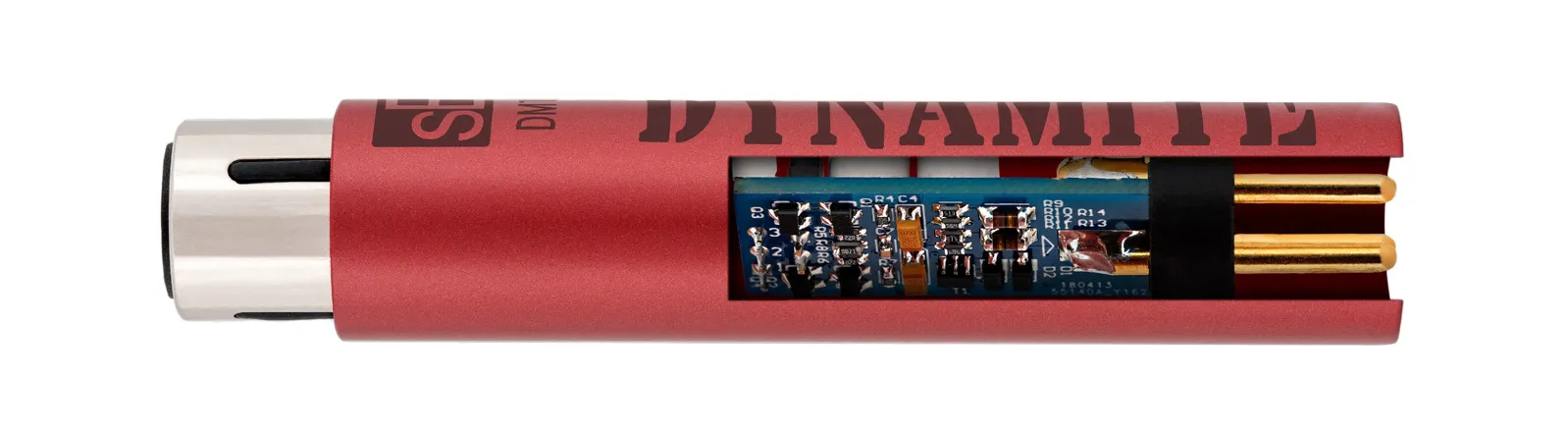

SOPHISTICATED CLASS-A ELECTRONICS
state of the art electronics and high-grade FETs provide supremely low noise

transformerless design for pristine sound quality

provides the lowest noise in its class

DEDICATED OUTPUT BUFFER AMPLIFIER
provides +28dB output independent of load impedance or cable length

extremely low output impedance

drives long cable runs and can reduce susceptibility to RF interference, buzz & hum

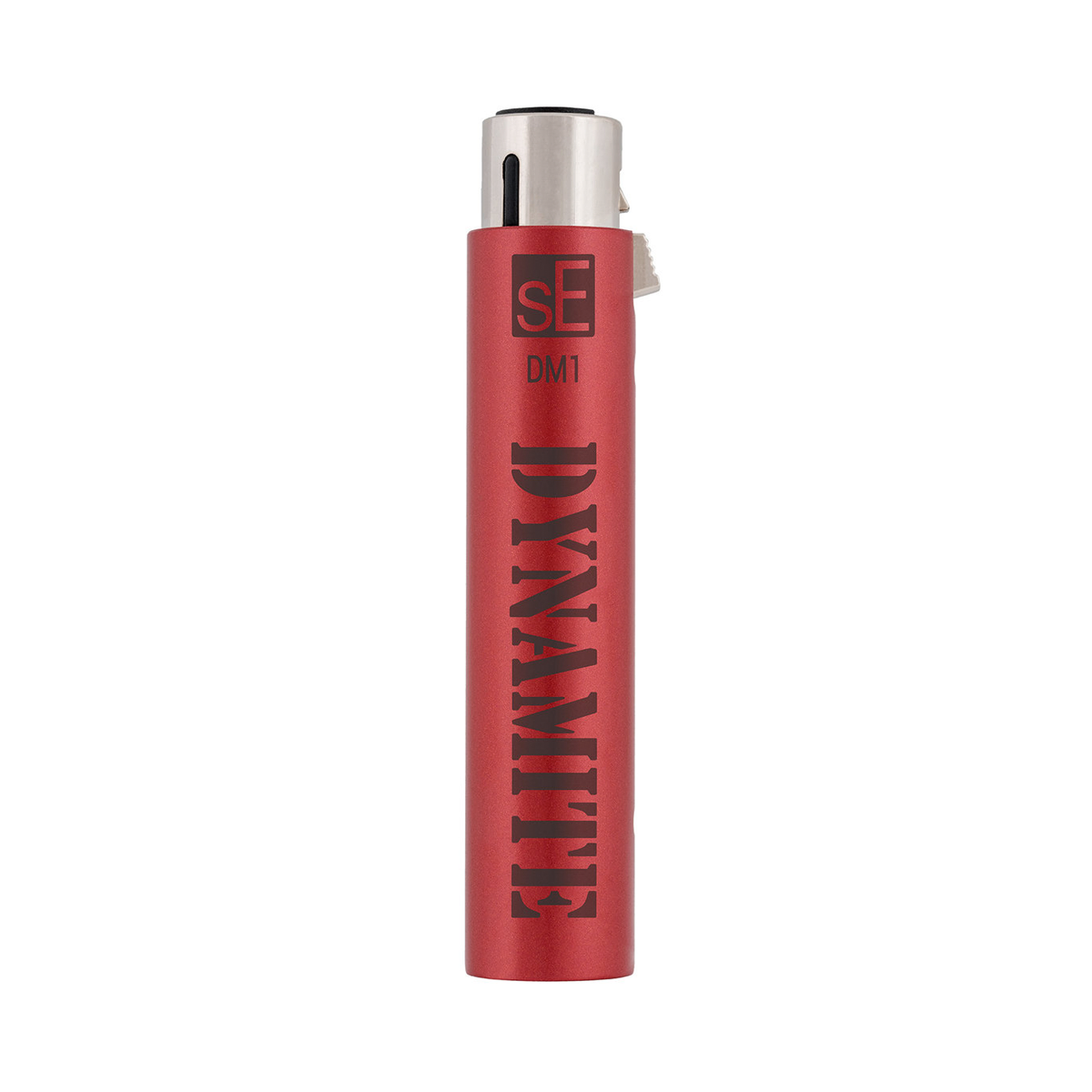

SLIM, RUGGED ALL-METAL HOUSING WITH PREMIUM FINISH
efficient rejection of any electrical interference and noise

high-quality finish ensures a great look for many years

slim design allows for easy placement in the studio or on stage

GOLD-PLATED XLR CONNECTOR
for loss-free and reliable signal connection

IN THE BOX:
DM1
sE Logo Sticker
User manual with warranty card

SPECIFICATIONS:
Frequency Range: 10 Hz – 120,000 Hz (-0.3 dB)
Gain: 28 dB (load 1kOhms)
Max output level (0.5% THD): 8.3 dBV (2.6 V)
Output noise level: 9 μV (JIS-A)
Powering: 48 Volts according toIEC 61938
Electrical impedance: 135 Ohms
Recommended load impedance: >1k Ohms
Current consumption: 3.0 mA
Connectivity: 3-pin male/female XLR connector
Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
Weight: 80 g (2.82 oz.)

SYSTEM REQUIREMENTS
REQUIREMENTS
input: passive microphone (ribbon/dynamic)
output: preamp/mixer/audio interface providing 48V phantom power

LIMITATIONS
not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)

SKU SEEL_DM1
Barcode # 819032011560
Brand SE Electronics
