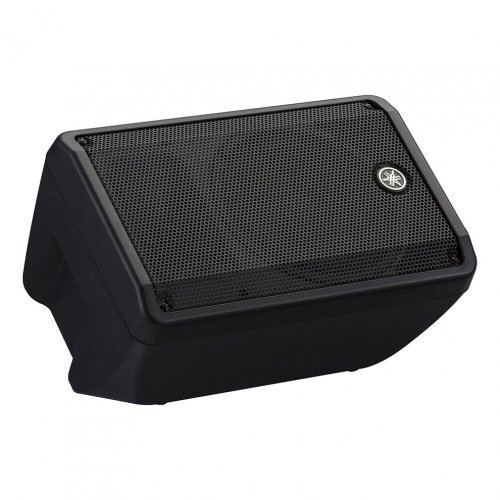

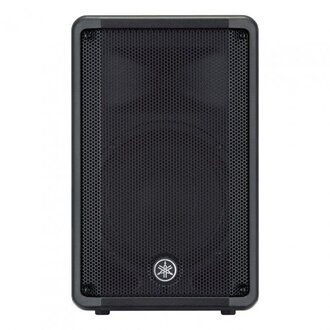

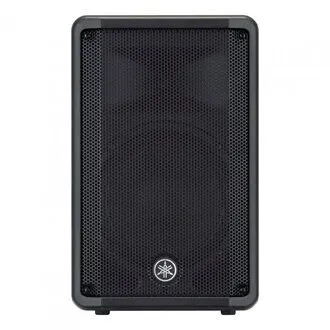

The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design
and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.
Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovative
approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly
portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
- Rugged, Highly Portable Enclosure Design
- Simple Connectivity
- Versatility for a Variety of Applications



General specifications

Speaker type 2-way Speaker, Bass-reflex Type
Frequency range (-10dB) 50 Hz - 20 kHz
Nominal coverage H 90°
V 60°
Components LF 10" Cone, 2" Voice Coil (Ferrite Magnet)
HF 1" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover 2.8 kHz
Power rating NOISE 175W
PGM 350W
PEAK 700W
Nominal impedance
SPL Sensitivity (1W; 1m on axis) 94dB SPL
Peak (Calculated) 123 dB SPL

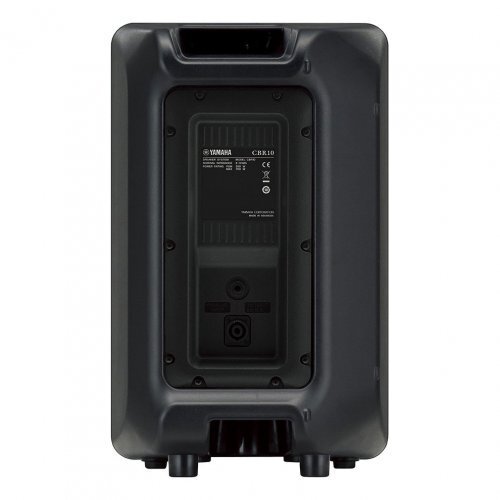

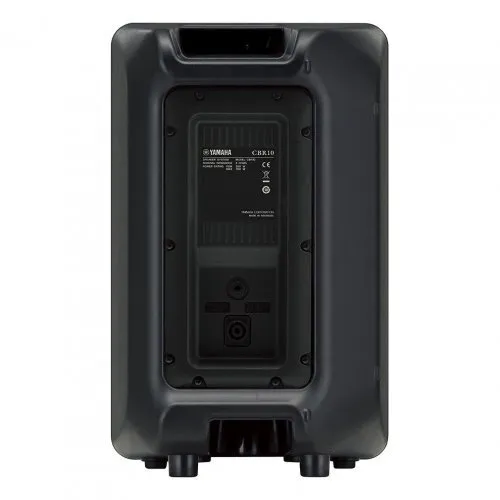

I/O connectors 1/4" Phone x 1, speakON NL4MP x 1
Cabinet material Plastic
Finish Black
Handle Top x 1
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket Φ35 mm Bottom x 1
Dimensions W 308mm (12.1")
H 493mm (19.4")
D 289mm (11.4")
Net weight 9.4 kg (20.7 lbs)

Tech Specs

Powered Yes
Power Configuration Bi-amped
LF Driver Size 10"
HF Driver Size 1"
LF Driver Power Amp 500W
HF Driver Power Amp 200W
Total Power 700W
Frequency Range 55Hz-20kHz (-10 dB)
Crossover Frequency 2.1kHz
Maximum Peak SPL 129dB
Horizontal Coverage Angle 90 Degrees
Vertical Coverage Angle 60 Degrees
Enclosure Material Plastic
Mounting Options Pole, Floor Wedge
Inputs 2 x XLR/TRS Combo, 1 x stereo RCA
Outputs 1 x XLR
Height 19.4"
Width 12.1"
Depth 11.4"
Weight 23.2 lbs.
Manufacturer Part Number DBR10
SKU ZJ05340
Brand Yamaha
