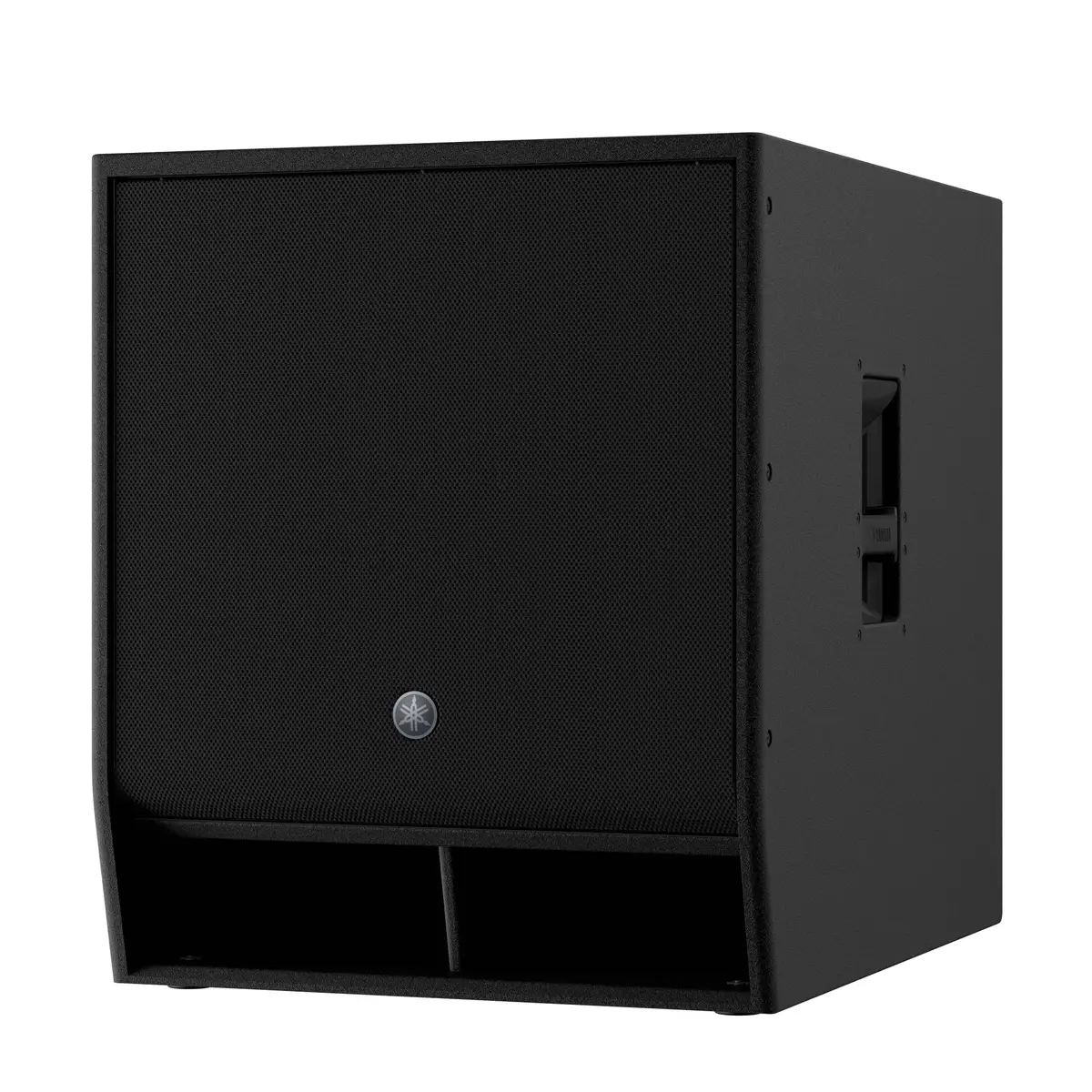

Yamaha CXS18XLF 18" Passive Subwoofer

CXS-XLF Series subwoofers can extend your system’s low frequency performance dramatically down to a startling 29Hz for huge low frequency reproduction capability that’s sure to impress. Featuring a customised woofer housed in a sturdy enclosure, CXS-series subwoofers are able to deliver powerul low-end with minimal distortion and superb clarity.

Perfectly suited for use with CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 133dB SPL performance.
CXS18XLF

18” subwoofer with 4” Voice Coil
High power 1000W (PGM) input
Cardioid mode capable with processors or DSP onboard power amps
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

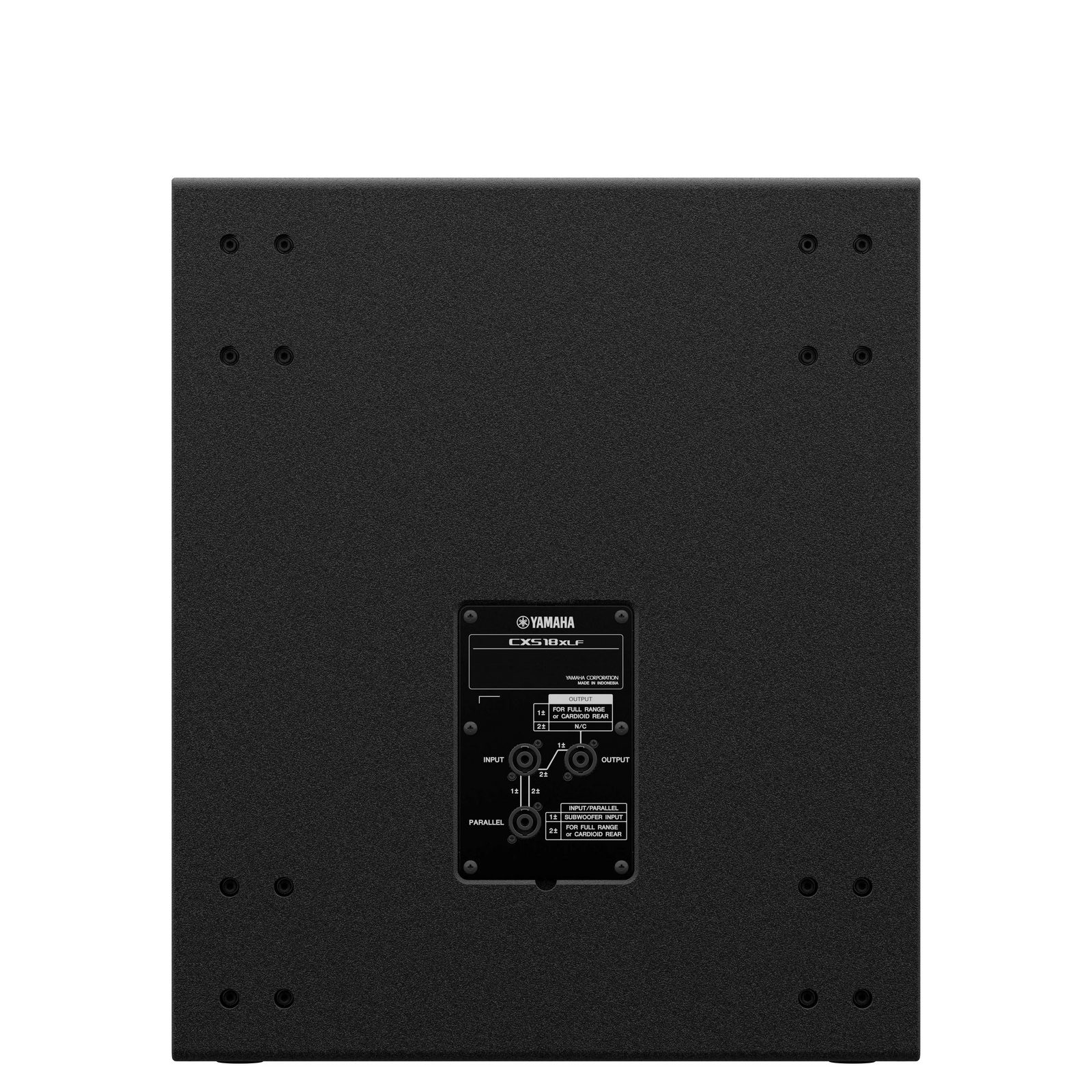

SpeakON NL4MP x 3 (Parallel x2, Output x1)
Dual-pole socket
Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

General specifications
Speaker type Subwoofer, Bass-reflex
Frequency range (-10dB) Passive: 32 Hz - 3kHz, Normal (*1): 32 Hz - 150 Hz, Extend (*1): 29 Hz - 150 Hz
Coverage area -
Floor Monitor Angle -
Components LF 18" Cone, 4" Voice Coil, Ferrite magnet
HF -
Crossover -
Power rating NOISE 500 W (EIA 426-A)
PGM 1000 W (EIA 426-A)
PEAK 2000 W (EIA 426-A)
Nominal impedance
SPL Sensitivity (1W; 1m on axis) 100dB *2
Peak (Calculated) 133 dB *2
I/O connectors SpeakON NL4MP x 3 (Parallel x2, Output x1)
Handle Aluminium die-cast, Side x2
Pole socket Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
Rigging -
Dimensions W 550 mm (21.6")
H 657 mm (25.9") (with rubber feet)
D 720 mm (28.4")
Net weight 43.6kg (96.1 lbs)
Options Cover: SPCVR-DXS18X, Caster: SPW-1
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black
SKU ZQ53220
Brand Yamaha
