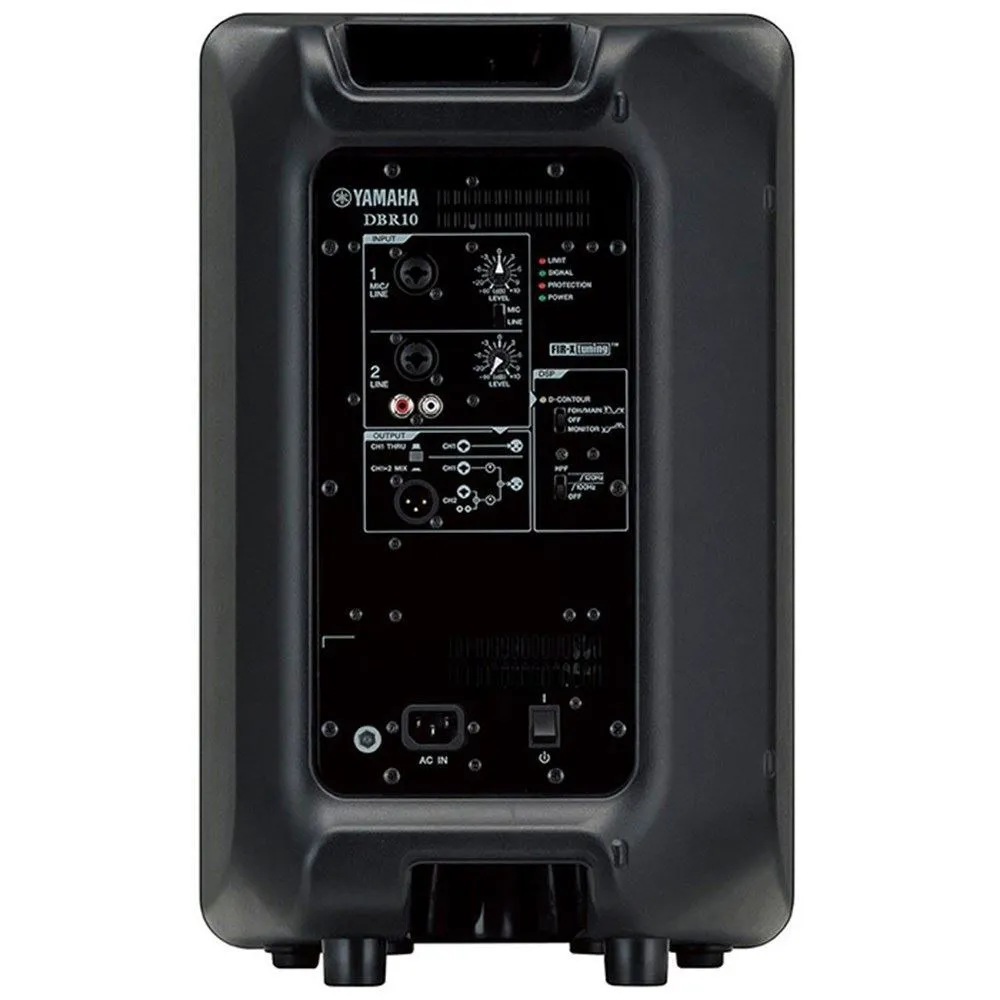

Yamaha DBR10 10" Powered Speaker

SKU: ZG69100

$649.00
RRP $799.99
SAVE $150.99
Share:
  • GOLD COAST MUSIC
  • Only 2 Left!
  • SYDNEY WAREHOUSE
  • 5+ In Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



In Stock

The DBR10 offers 700 watts of power, a 10" low frequency driver and crystal clear high frequency driver, a convenient mixer and versatile DSP processing.






Yamaha DBR10 10" Powered Speaker

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level.

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Features

  • Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency range: (-10dB) 55Hz – 20kHz
  • Components: Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
  • Diaphragm: 1", Type: 1" throat compression driver, Magnet:Ferrite
  • Maximum output level (1m; on axis): 129dB SPL
  • Width: 308mm (12.1")
  • Height: 493mm (19.4")
  • Depth: 289mm (11.4")
  • Net Weight: 10.5 kg (23.2 lbs)

Tech Specs

Powered Yes
Power Configuration Bi-amped
LF Driver Size 10"
HF Driver Size 1"
LF Driver Power Amp 500W
HF Driver Power Amp 200W
Total Power 700W
Frequency Range 55Hz-20kHz (-10 dB)
Crossover Frequency 2.1kHz
Maximum Peak SPL 129dB
Horizontal Coverage Angle 90 Degrees
Vertical Coverage Angle 60 Degrees
Enclosure Material Plastic
Mounting Options Pole, Floor Wedge
Inputs 2 x XLR/TRS Combo, 1 x stereo RCA
Outputs 1 x XLR
Height 19.4"
Width 12.1"
Depth 11.4"
Weight 23.2 lbs.
Manufacturer Part Number DBR10
SKU ZG69100
Barcode # 4957812559690
Brand Yamaha
